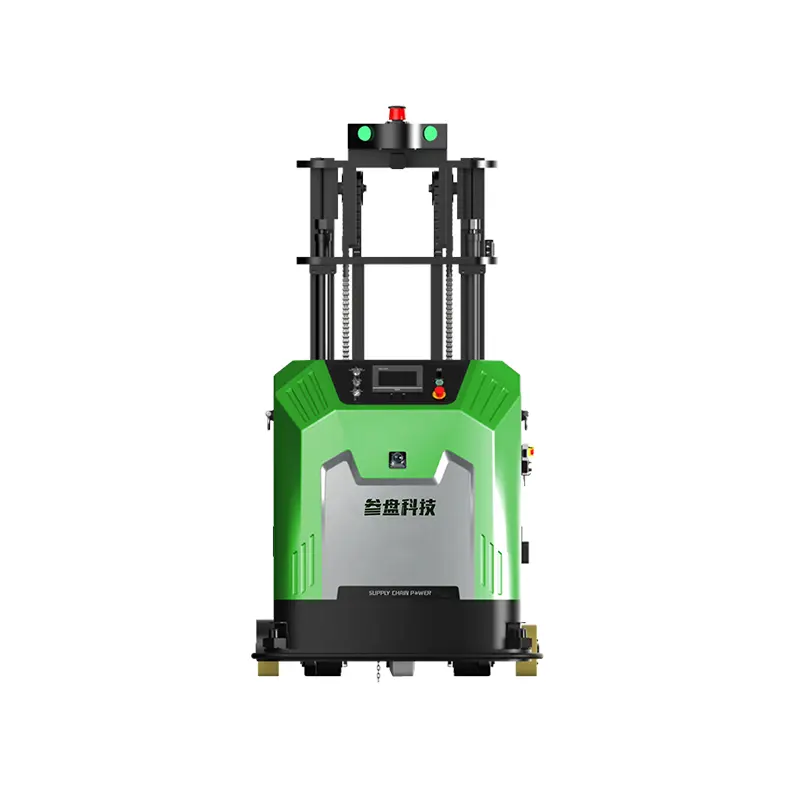

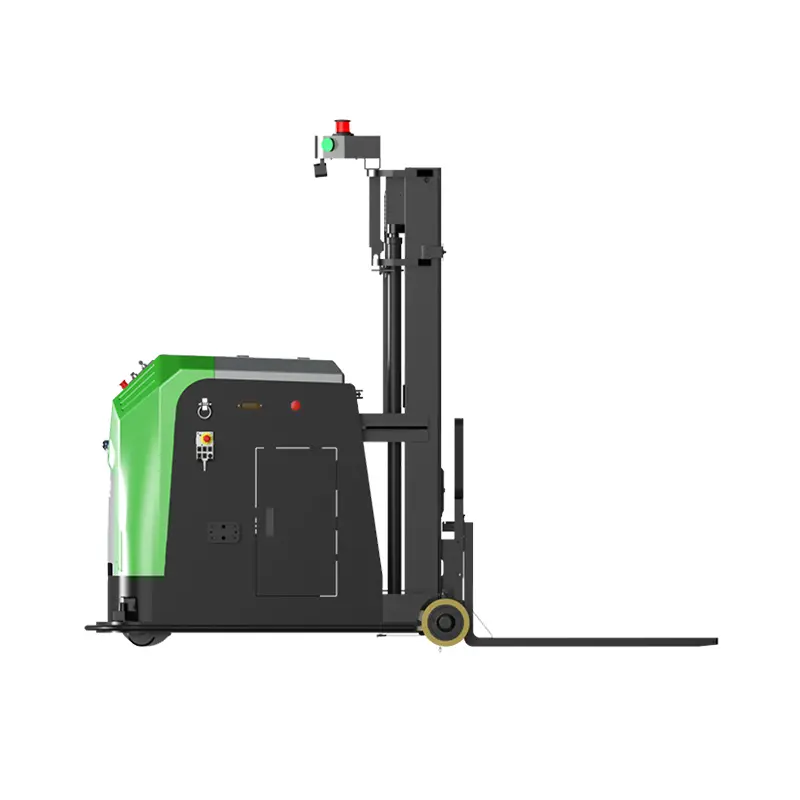

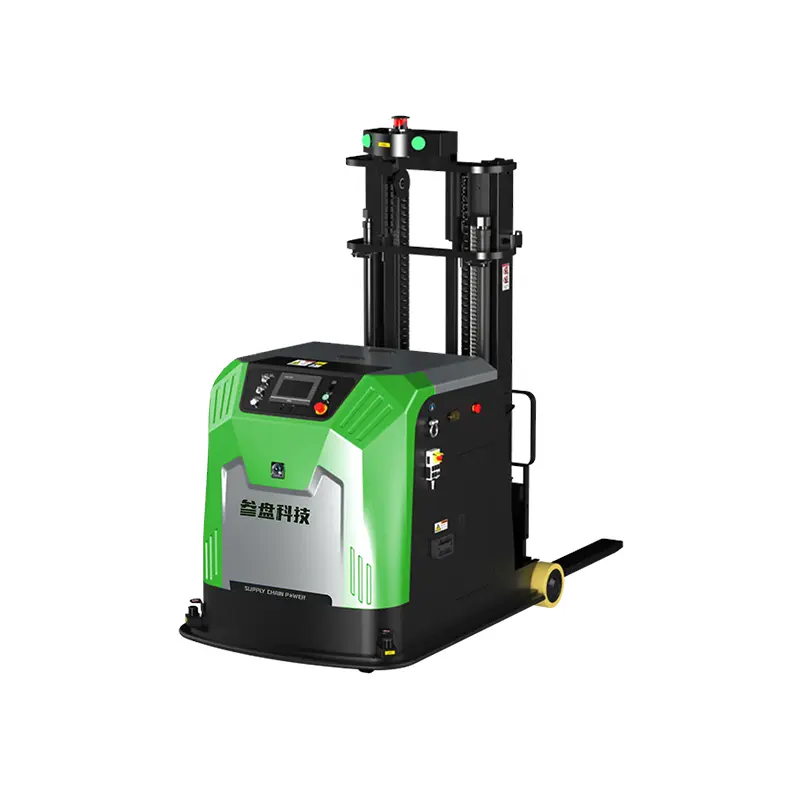

Best China Suppliers Factory Laser SLAM Smart Forklift SFL-CPD20-Y with 2000kg Capacity and Advanced Efficiency Manufacturer, Factory
Product Description
01
🔊 Cargo Separation Inspection, Safe Stacking
Ultrasonic waves detect the separation status of goods and forks online to escort safe stacking.
02
↔️ Fork Wide-Area Width Adjustment
The fork can be manually adjusted from 400 mm to 700 mm, adapted to various types of vehicles. It can identify multiple sizes, multiple types of pallets, rack and cages from multiple angles and high precision.
03
📐 1180 mm Narrow Body, 2 T High Load
Body width is only 1180 mm, minimum slewing radius is 1577 mm, maximum load 2 T, standard height 3 m, acceptable for 4 m height body customization.
04
🛡️ 40 m Ranging, 4 Levels of Safety Protection
40 m detection distance, large field of view, safer. With 3D safety obstacle avoidance laser, safety touch edge, distance sensor, and 4-fold safety protection for hardware self-test.
05
⚡ 2 Min Fast Battery Replacement, 2 H Fast Charge
Supports novice to quickly change the battery for 2 minutes, and has no worries about battery life. Configure 24 V / 200 Ah battery, 6 h–8 h high battery life, 24 V fast charging pile, full charge for 2 h.
06
🎨 Flexible Customization, 4 Options
Four customization methods: fork width, vehicle height, color, and LOGO, flexibly meet various needs of customers in actual scenarios.
Technical Highlights
08
🔒 Proactive Load Safety System
- Ultrasonic cargo monitoring continuously verifies load-fork engagement
- Instantaneous detection of load separation incidents
- Prevents accidental material drops during transit (tested per EN 528:2021)
09
🔄 Universal Load Adaptability
| Feature | Capability |
| Fork Width Adjustment | 400–700mm manual range |
| Pallet Recognition | Multi-size/type racks & containers |
| Positioning Precision | ±5mm fork alignment accuracy |
| Handles EUR/ISO/DIN standard pallets without retooling | |
10
📏 Space-Optimized Performance
- Ultra-narrow 1,180mm chassis
- 1,577mm minimum turning radius
- 2-ton payload capacity (3m lift height)
- 4m custom lift option for high-bay operations
- Operates in 2.4m aisles with 28% higher space utilization
11
🛡️ Quad-Layer Safety Architecture
- Long-range 3D LiDAR (40m detection)
- EN 1175-compliant safety bumpers
- Proximity sensor array (0.1–8m)
- Automated hardware diagnostics
- Meeting ANSI/ITSDF B56.5 Category 3 safety requirements
12
🔋 Rapid Power Management
- Foolproof 2-minute battery swap
- 24V/200Ah LiFePO₄ battery pack
- 6–8 hours continuous operation
- 24V rapid charger (2-hour full recharge)
Customization & Advantages
13
⚙️ Customization Capabilities
↔️
Fork Width Configurations
📏
Chassis Height Modifications
🎨
Brand-Specific Color Schemes
🏷️
Custom Identification Markings
14
📈 Operational Advantages
🚫
Zero Load-Droppage Incidents in validation trials
⏱️
38% Faster Format Changeovers vs mechanical adjusters
🔌
27% Less Charging Infrastructure required
✅
UL 583 Certification Pending (Q3 2025)
15
🏅 Why This Sets Industry Standards
🔍
Eliminates fall protection barriers with active load monitoring
📦
Reduces pallet damage by 62% through precision alignment
🔄
Processes 23% more loads per shift with rapid battery swaps
💰
Achieves full ROI in <9 months (VDI 3650 calculation)
❓ Frequently Asked Questions
Q: What is the maximum load capacity of the SFL-CPD20-Y intelligent forklift?
The SFL-CPD20-Y supports a maximum payload capacity of 2 tons (2,000 kg) with a standard lift height of 3 meters. A custom 4-meter lift height option is also available for high-bay warehouse operations.
Q: How does the cargo separation detection system work?
The forklift uses ultrasonic sensors to continuously monitor the engagement status between the load and the forks in real time. If a separation event is detected, the system responds instantly to prevent accidental material drops during transit, tested in compliance with EN 528:2021 standards.
Q: What types of pallets and racking systems are compatible with this forklift?
The SFL-CPD20-Y is designed to handle EUR, ISO, and DIN standard pallets without any retooling. Its fork width is manually adjustable from 400 mm to 700 mm, and the intelligent recognition system can identify multiple sizes and types of pallets, racks, and cages from multiple angles with ±5mm positioning precision.
Q: How long does a full battery charge take, and what is the operational runtime?
The forklift is equipped with a 24V/200Ah LiFePO₄ battery pack that provides 6 to 8 hours of continuous operation per charge. Using the included 24V rapid charger, a full recharge is completed in just 2 hours. Additionally, the tool-free battery swap system allows operators to replace the battery in as little as 2 minutes.
Q: What safety certifications and standards does the SFL-CPD20-Y comply with?
The SFL-CPD20-Y meets ANSI/ITSDF B56.5 Category 3 safety requirements and features EN 1175-compliant safety bumpers. Its quad-layer safety architecture includes long-range 3D LiDAR (40m), proximity sensor arrays (0.1–8m), and automated hardware diagnostics. UL 583 certification is currently pending, expected in Q3 2025.
Q: Can the SFL-CPD20-Y be customized for specific warehouse or branding requirements?
Yes. The SFL-CPD20-Y offers four customization options: fork width configurations, chassis height modifications, brand-specific color schemes, and custom identification markings (LOGO). These flexible options allow the forklift to be tailored to meet diverse operational and branding needs across different industries and environments.
