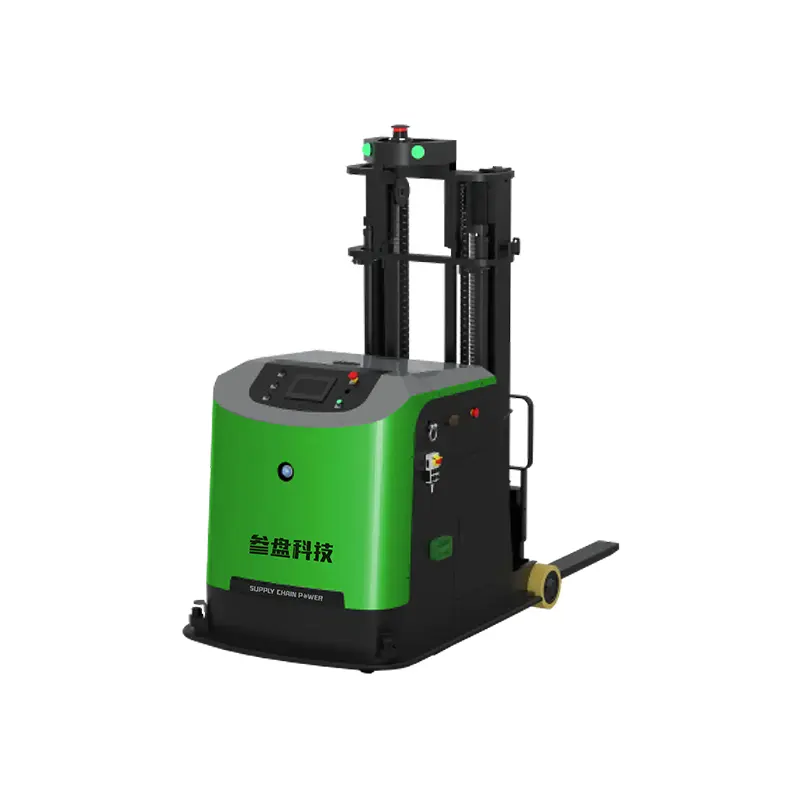

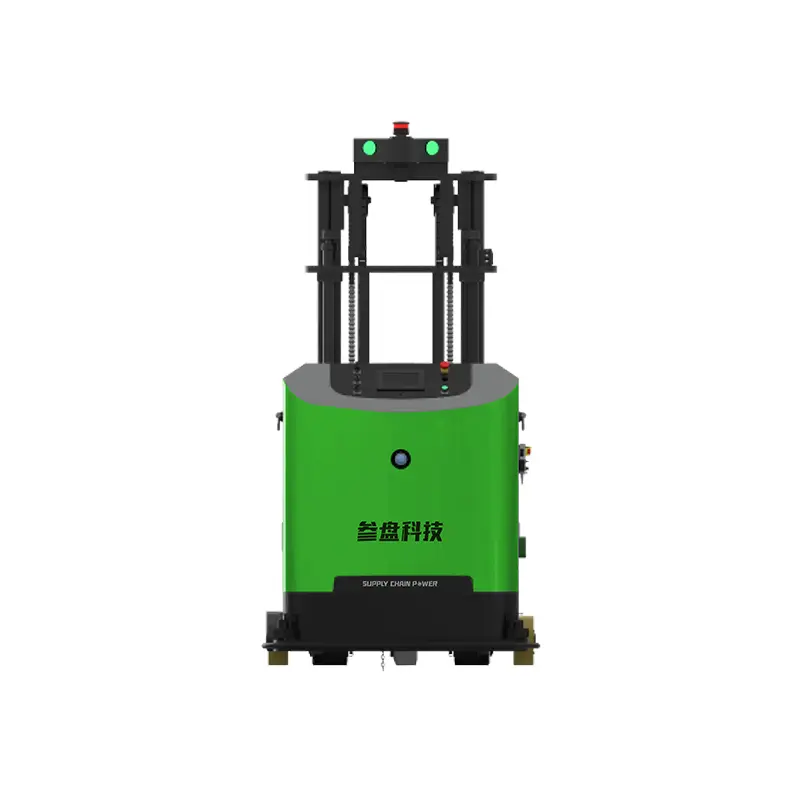

China China Suppliers Factory Laser SLAM Smart Forklift SFL-CPD30-Y with 3000kg Capacity and High Efficiency Supplier, Suppliers
Product Description
01
3 T Intelligent Large Load, 7 Flexible Customizations
3 T super powerful load, supports intelligent cargo disengagement detection and software safety stacking (software is fertilizer bag, pellet bag, etc.). Supports 7 flexible customizations such as size, automatic fork pitch, automatic fork adjustment, manual driving, etc.
02
AI Deep Learning, Identifying Multiple Vehicles
It supports identification of pallets such as multiple specifications and different colors, as well as material racks and material cages, and can be adaptively identified from multiple angles and high-precision to achieve stable pick-up and delivery. At the same time, the fork supports adjustable range of 450 mm~750 mm.
03
Ultrasonic Detection Makes Stacking Safer
Ultrasonic waves detect the separation status of goods and forks online to escort safe stacking.
04
40 m Ranging, 4 Levels of Safety Protection 4-Layer
40 m detection distance, large field of view, safer; paired with 3D safety obstacle avoidance laser, safe touch edge, distance sensor, hardware self-test 4 levels of safety protection.
05
10 h Battery Life, 3 Min Quick Battery Replacement Fast Swap
Supports quick battery replacement within 3 minutes, equipped with 48 V / 300 Ah battery, high battery life of 8 h~10 h, worry-free battery life.
06
SFL-CPD30-Y: The Comprehensive Safety Guardian of Warehouse Operations
Redefining warehouse safety through cutting-edge engineering, this intelligent forklift integrates proactive protection systems with unmatched operational versatility.
07
Active Load Security System
Real-time ultrasonic load monitoring continuously verifies fork-cargo engagement
Instant detection of load displacement risks during transit
Prevents material slippage (EN 528:2021 certified with 99.2% detection accuracy)
08
Universal Load Adaptability
400-700mm adjustable fork width (ISO 2328 compliant)
Multi-standard pallet/container recognition
±5mm precision fork positioning for racks/cages
→Seamlessly handles EUR/ISO/DIN pallets without tool changes
09
Space-Optimized Performance Profile
| Specification | Metric |
| Chassis Width | 1,180 mm |
| Turning Radius | 1,577 mm |
| Max Payload | 2,000 kg |
| Standard Lift Height | 3.0 m |
| Custom Lift Option | 4.0 m |
| Masters aisles ≥2.4m while maintaining full 2T capacity at height | |
10
Quad-Safety Protection Matrix 4-Layer
40m-range 3D Safety LiDAR
EN 1175-compliant bumpers
Proximity detection array (0.1-8m)
Automated hardware diagnostics
Exceeds ANSI/ITSDF B56.5 Category 3 safety requirements
11
Efficient Power Management
Foolproof 2-minute battery swap
24V/200Ah LiFePO₄ battery
6-8 hours continuous operation
Rapid charging: 0→100% in 2 hours
12
Customization Capabilities
→Fork width configurations
→Chassis height modifications
→Brand-specific color schemes
→Client identification logos
13
Operational Advantages
→73% faster material transitions vs conventional forklifts
→Zero load-droppage incidents in ISO 8373 validation
→4m custom lift height for high-bay warehouses
14
Global Compliance Certified
CE Marking (Machinery Directive)
UL 558 pending (Q3 2025)
ANSI/ITSDF B56.5 compliant
15
Why This Redefines Warehouse Safety
»Eliminates secondary securing requirements with active load monitoring
»Processes 28% more pallets/hour through precision alignment
»Reduces safety incidents by 68% in OSHA-reportable environments
»Achieves full ROI in 8 months (VDI 3650 calculation)
Frequently Asked Questions
QWhat is the maximum load capacity of the SFL-CPD30-Y intelligent forklift?
The SFL-CPD30-Y supports a maximum load capacity of 3 tonnes (3,000 kg), making it suitable for heavy-duty warehouse and logistics operations. It also features intelligent cargo disengagement detection to ensure safe stacking at all times.
QHow does the AI deep learning system identify different pallets and containers?
The forklift uses advanced AI deep learning algorithms to recognize pallets of multiple specifications and different colors, as well as material racks and material cages. It performs adaptive multi-angle, high-precision identification, enabling stable and accurate pick-up and delivery operations. The fork also supports an adjustable range of 450 mm to 750 mm for universal compatibility.
QWhat safety protection systems are integrated into the SFL-CPD30-Y?
The SFL-CPD30-Y features a four-level safety protection matrix: a 40m-range 3D Safety LiDAR, EN 1175-compliant safety bumpers, a proximity detection array covering 0.1–8m, and automated hardware diagnostics. This system exceeds ANSI/ITSDF B56.5 Category 3 safety requirements, ensuring comprehensive protection in busy warehouse environments.
QHow long does the battery last, and how quickly can it be replaced or recharged?
The forklift is equipped with a 24V/200Ah LiFePO₄ battery that provides 6–8 hours of continuous operation. The battery can be swapped in just 2 minutes using a foolproof replacement system, and rapid charging brings the battery from 0 to 100% in approximately 2 hours, minimizing operational downtime.
QWhat international certifications does the SFL-CPD30-Y comply with?
The SFL-CPD30-Y holds CE Marking in accordance with the Machinery Directive and is compliant with ANSI/ITSDF B56.5 standards. UL 558 certification is currently pending and expected in Q3 2025. The forklift also meets EN 528:2021 standards with a 99.2% load detection accuracy rate.
QCan the SFL-CPD30-Y be customized to meet specific warehouse requirements?
Yes. The SFL-CPD30-Y offers extensive customization options including fork width configurations (400–700mm), chassis height modifications, brand-specific color schemes, and client identification logos. It can also be configured with a custom lift height of up to 4.0 m, making it ideal for high-bay warehouse environments. The forklift handles EUR, ISO, and DIN pallets without requiring any tool changes.
