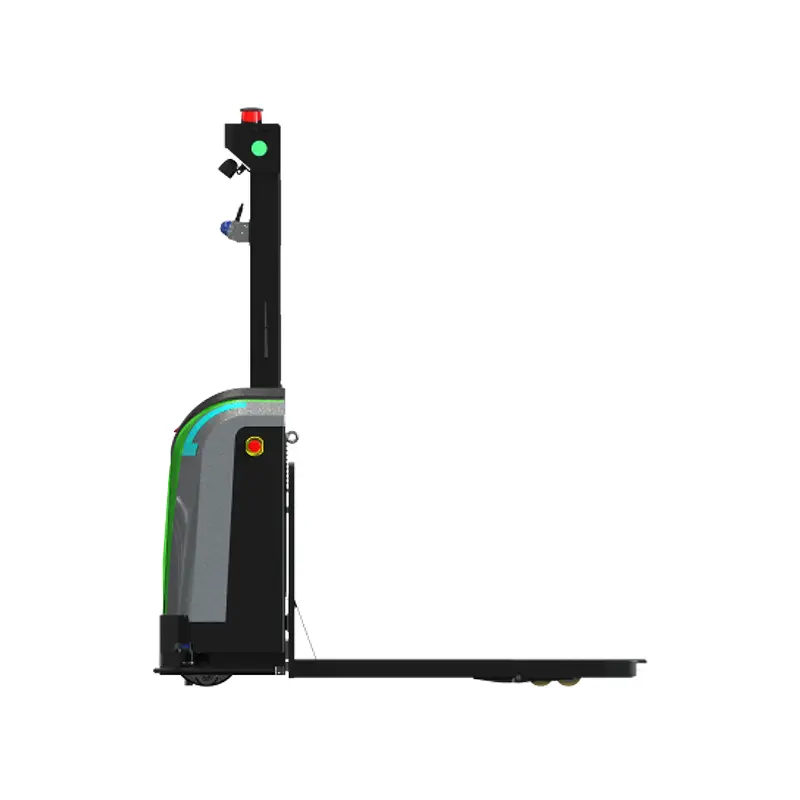

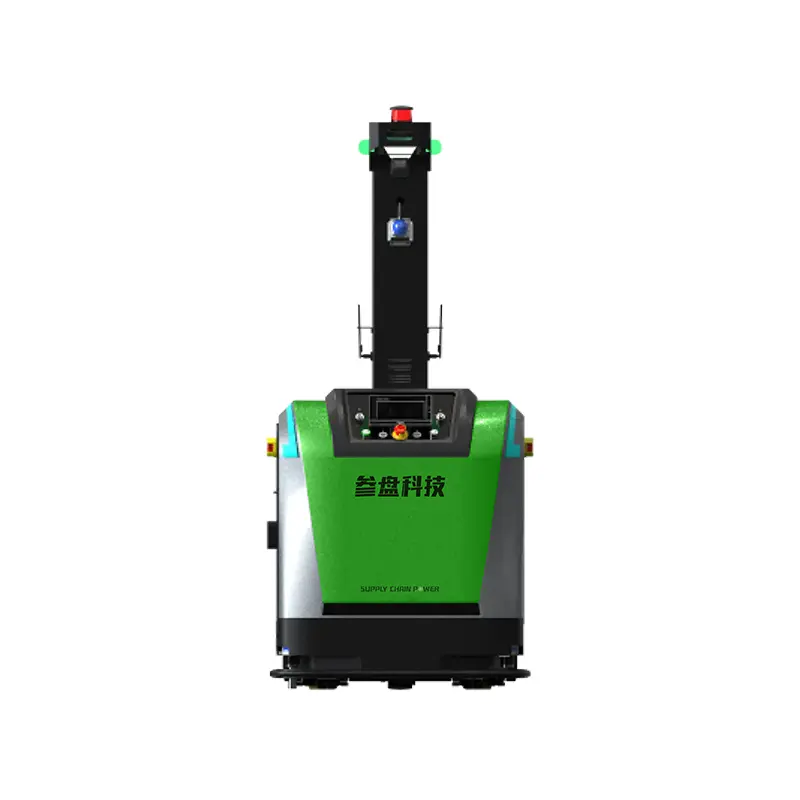

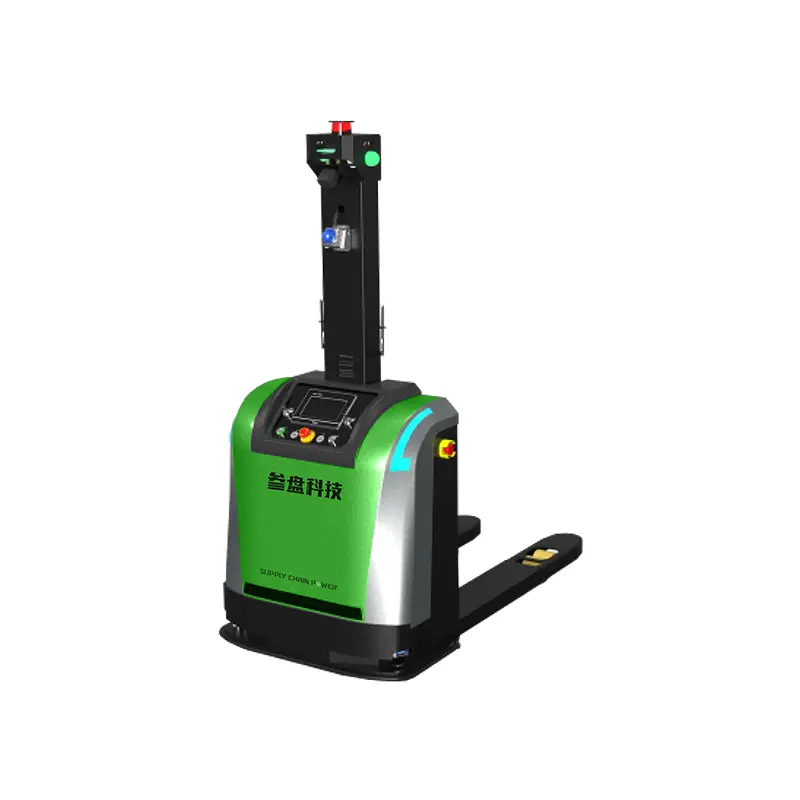

China China Suppliers Factory Smart Forklift SFL-CBD16-S: 1.6T Laser SLAM Handling with Cost-Effective Performance Suppliers, Factory
Product Description
1.6 T load, vehicle width is only 880 mm, minimum turning radius is 1329 mm, adapting to various narrow channels. Standard equipped with servo walking and steering, drive wheel dual-spring shock absorption and booster cylinder, with higher stability and operating accuracy, and no slippage troubles.
It supports three navigation methods: SLAM, reflector, and NFL, covering various scenario business navigation needs, such as secondary positioning, high dynamic environment, no transformation environment, etc.; the positioning accuracy can reach ±10 mm.
It supports identification of pallets of various specifications and colors, as well as material racks and material cages, and can be adaptively identified from multiple angles and high-precision to achieve stable pick-up and delivery.
The entire series is equipped with dual obstacle avoidance laser, plug-in protection photoelectric, and protective touch edges. It can be equipped with 360° three-dimensional safety protection laser to ensure the safety of human-computer interaction scenarios.
Supports up to 46A fast charging, charging for 1 hour, single battery range of 4 to 6 hours, dual battery range of 8 to 10 hours. 3-minute novice quick battery change; Global insurance certified modular battery, supporting dual battery combinations, enjoying dual battery life.
The SFL-CBD16-S supports a maximum payload of 1.6 tons. With a vehicle width of only 880 mm and a minimum turning radius of 1,329 mm, it is specifically engineered for narrow-aisle warehouse environments, making it suitable for aisles with limited clearance.
The SFL-CBD16-S features a Tri-Modal Navigation System supporting SLAM (LiDAR-based localization), Reflector Marker Guidance, and Natural Feature Learning (NFL). This combination covers a wide range of deployment scenarios including zero-infrastructure environments and high-dynamic workflows, all while maintaining ±10 mm positioning accuracy.
The deep learning vision system can recognize pallets of various specifications and colors, as well as material racks and material cages. It performs adaptive fork alignment with ±5 mm precision from multiple angles and achieves a 99.2% first-attempt pickup success rate as validated under ISO 8373 standards.
Standard safety features include dual Category 3 Safety LiDARs compliant with EN 61496, fork tip photoelectric sensors, and EN 1175-compliant protective bumpers. An optional upgrade is available in the form of a 60° 3D Safety LiDAR certified to ISO 3691-4, providing enhanced 360° three-dimensional protection for human-machine interaction zones.
The SFL-CBD16-S supports up to 46A fast charging with a 1-hour charge time. A single battery provides 4–6 hours of operation, while a dual battery configuration extends the range to 8–10 hours. The modular battery design allows for a quick 3-minute swap, and the batteries are globally insurance-certified, supporting dual battery combinations for extended productivity.
Yes. The NFL (Natural Feature Learning) navigation mode allows the SFL-CBD16-S to operate in environments without any infrastructure changes or reflector installations. This makes it an ideal solution for facilities seeking automation without the cost or disruption of physical modifications.
