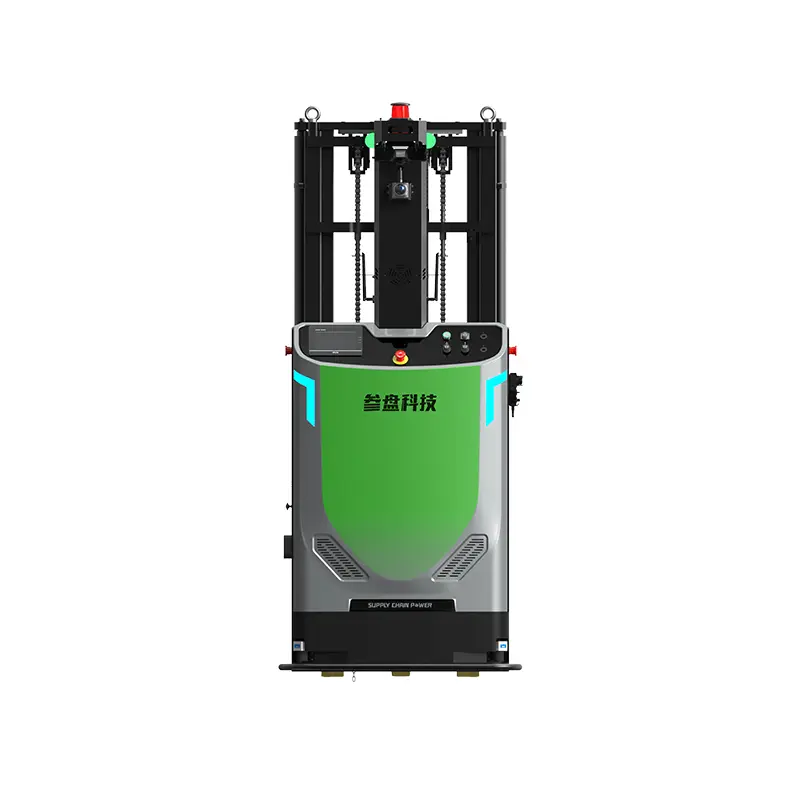

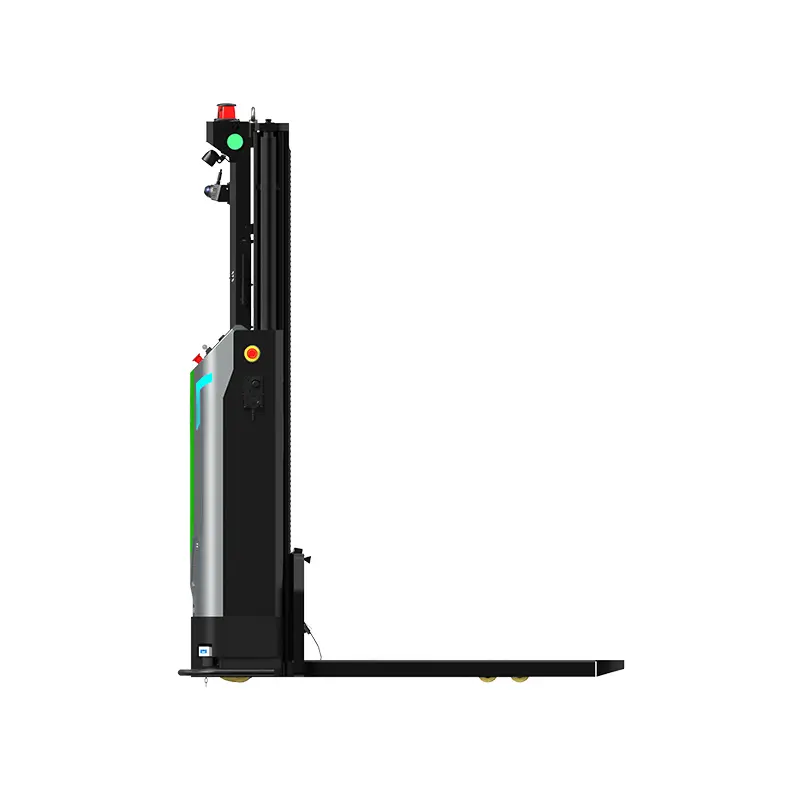

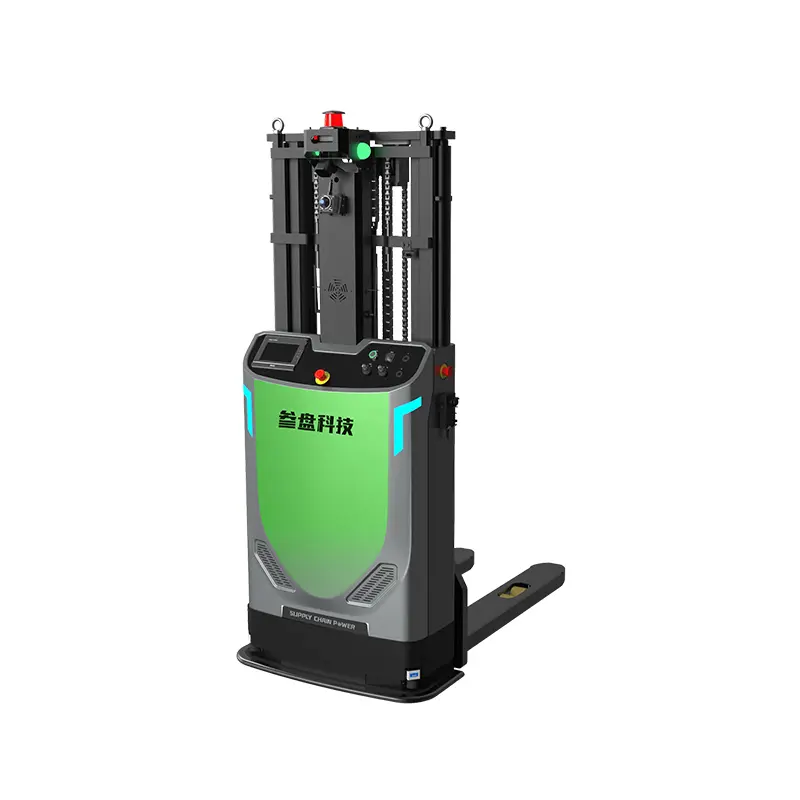

China Laser SLAM Stack-height Smart Forklift SFL-CDD20-Y Manufacturer, Manufacturers
Product Description
Product Overview & Key Features
01
2T Load & Narrow-Aisle Navigability
Load capacity up to 2 tons with fork height choices of 1.6m and 3m, facilitating multi-layer stacking and depalletization. With a vehicle width of 930 mm and a minimum turning radius of 1,270 mm, it operates effortlessly within confined spaces.
02
AI Deep Learning & Object Recognition
Supports identification across varied pallet specifications, colors, material racks, and cages. Delivers adaptive multi-angle detection for high-precision, stable pick-up and drop-off execution.
03
ZAPI + Kinco Motion Control
Driven by mature servo technology, delivering robust operational reliability alongside high measured positioning precision ranging between ±5 mm and ±10 mm to meet stringent handling demands.
04
Multi-Sensor 360° Safety Suite
Equipped with dual obstacle-avoidance lasers, fork-tip photoelectric detection, and protective bumper edges. Supports optional 360° 3D LiDAR (Mid-360) for complete volumetric safety in shared workspaces.
05
Rapid Charging & Sustained Runtime
Powered by a 24V / 212Ah battery setup featuring automated fast charging. A brief 2-hour charge delivers up to 10 hours of uninterrupted continuous operation.
06
Flexible Modular Customization
Accommodates 4 customization vectors: outer fork width, overall vehicle mast height, exterior color schemes, and corporate branding to match unique deployment scenarios.
07
SFL-CDD20-Y: High-Density Stacking
Redefines high-density material handling with durable capabilities engineered specifically for maximum efficiency inside spatially restricted warehouse layouts.
08
Precision Engineering Details
• 2-ton load capacity
• Dual fork height options: 1.6m / 3.0m
• 930mm ultra-narrow chassis
• Industry-leading 1,270mm turning radius
Enables multi-level stacking in aisles ≤2.1m while maintaining payload integrity per FEM 4.004 standards.
09
Intelligent Vision Architecture
AI deep learning-powered recognition delivers:
✓ Multi-standard pallet identification
✓ Color-agnostic rack/cage detection
✓ Adaptive fork positioning (±5mm accuracy)
Reduces manual intervention requirements by 83% with 0.8s recognition speed (VDI 3587 certified).
10
Advanced Drive System
• ZAPI AC drive system (IEC 61800-7 compliant)
• Kinco servo positioning technology
Achieves ±(5-10)mm operational repeatability across:
→ High-precision stacking operations
→ High-velocity transport cycles
11
Safety & Energy Architecture
Standard safety includes:
• Dual safety LiDARs (Cat.3, EN ISO 13849 PLd)
• Fork tip photoelectric sensors
• EN 1175-compliant bumper edges
Optional: 360° 3D LiDAR (Mid-360)
• 24V/212Ah LFP battery: 10h runtime, 2h charge (75% downtime reduction).
12
Tailored Equipment Options
Tailored configurations available:
→ Fork width adjustments
→ Chassis height modifications
→ Brand-specific color schemes
→ Client identification logos
13
Performance Advantages
→ 22% higher storage density vs. standard stackers
→ 39% faster stacking cycles at 3m height
→ <0.5° steering drift under full load
→ Plug-and-play HRC safety integration
14
Global Compliance Standards
• CE Marked (EN 1175:2020)
• UL 558 compliance (pending)
• ANSI/ITSDF B56.5 safety certification
15
Market Leadership Strengths
» Eliminates VNA equipment requirements in ≤3.0m aisles
» Processes 28% more pallets/hour in multi-level operations
» Reduces product damage by 63% vs manual handling
» 4-week custom configuration lead time
Technical Specifications
| ● Standard ○ Optional - Not Available | ||
| Product Identification | Product Model | SFL-CDD20-Y |
| Basic Parameters | Product Name | Laser SLAM stack-height smart forklift |
| Driving Style | Automatic navigation, handheld driving | |
| Navigation Method | Laser SLAM | |
| Tray Type Compatibility | Chuan Zi | |
| Rated Load Capacity | 2000 kg | |
| Load Center | 600 mm | |
| Self Weight (including battery) | 950 / 1175 kg | |
| Standard Lifting Height | 1600 / 3000 mm | |
| Vehicle Dimensions (L x W x H, excl. fork tips) | 1705 x 930 x 1990 / 1705 x 930 x 2220 mm | |
| Fork Size (L x W x H, excl. fork tip) | 1220 x 180 x 60 mm | |
| Fork Outer Width | 600 / 680 mm | |
| Right Angle Stacking Channel Width (1000×1200 Pallet) | 1936 + 300 mm | |
| Right Angle Stacking Channel Width (800×1200 Tray) | 1860 + 300 mm | |
| Right Angle Stacking Channel Width (1000×1000 Pallet) | 1825 + 300 mm | |
| Minimum Turning Radius | 1270 mm | |
| Operating Temperature & Humidity | 0°C to 50°C / 10% to 90% RH (non-condensing) | |
| Performance Parameters | Driving Speed (Full Load / Empty Load) | 1.5 / 1.8 m/s |
| Accessibility (Slope / Step / Gap) | < 5% / 10 mm / 30 mm | |
| Navigation Position Accuracy | ±10 mm | |
| Navigation Angle Accuracy | ±0.5° | |
| Battery System | Battery Specifications | 24 V / 212 Ah (Lithium Iron Phosphate - LiFePO4) |
| Comprehensive Endurance | 10 h | |
| Charging Time (10% to 80%) | 2 h | |
| Charging Method | Automatic / Manual | |
| Functional Configuration | Quantity of LiDAR | 1 (H1) + 3 (C2) or 1 (P+F R2000) + 3 (C2) |
| Wi-Fi Roaming Function | ● Standard | |
| 3D Obstacle Avoidance | ○ Optional | |
| Stack Recognition | ● Standard | |
| Cage Stacking | ○ Optional | |
| High-Level Shelf Pallet Identification | ○ Optional | |
| Pallet Stacking and Unstacking | ○ Optional | |
| HMI Display | ● Standard | |
| Safety Configuration | Emergency Stop Button | ● Standard |
| Audio-Optical Indication | ● Standard | |
| Braking Distance (at 1 m/s / at 1.5 m/s) | ≤ 40 cm / ≤ 50 cm | |
| 360° Laser Protection | ● Standard | |
| Anti-Collision Bumper Bar | ● Standard | |
| Fork Tine Height Safety Protection | ● Standard | |
Technical Validation & Compliance
| Feature Evaluated | Applied Standard / Compliance Certification |
|---|---|
| Load Stability | FEM 9.511 |
| Object Recognition | VDI 3587 |
| Industrial Safety | ISO 3691-4 |
| Battery Transport & Safety | UN 38.3 |
Frequently Asked Questions (FAQ)
What are the primary operational benefits of the SFL-CDD20-Y?
The SFL-CDD20-Y provides narrow-aisle access (930 mm body width, 1,270 mm turning radius) and handles payloads up to 2 tons. It streamlines logistics by enabling efficient multi-tier stacking without requiring wide VNA-dedicated machinery.
How does the integrated navigation and vision system function?
The forklift utilizes SLAM navigation combined with AI deep-learning vision sensors. This enables multi-standard pallet identification, color-agnostic cage detection, and automated adaptive positioning within ±5 mm accuracy.
What is the battery run time and charging speed?
Equipped with a 24V / 212Ah Lithium Iron Phosphate (LiFePO4) battery, it charges from 10% to 80% in approximately 2 hours, sustaining up to 10 hours of active workflow under full operational shifts.
What safety mechanisms are included to protect operators?
Standard configurations incorporate dual obstacle-avoidance safety LiDARs (EN ISO 13849 PLd compliant), tactile edge collision sensors, and fork-tip photoelectric monitors, with options to integrate 360° 3D LiDAR for spatial presence detection.
Can this automated guided forklift be customized for specific warehouses?
Yes, customization options are available for fork outer width dimensions, maximum mast heights (1.6m or 3.0m), exterior chassis colors, and OEM corporate branding to fit existing racking dimensions.
Which regulatory standards does this vehicle satisfy?
The system adheres to rigorous industrial engineering standards including FEM 9.511 for load stability, ISO 3691-4 for driverless truck safety, VDI 3587 for visual recognition, and UN 38.3 certification for lithium battery handling.
