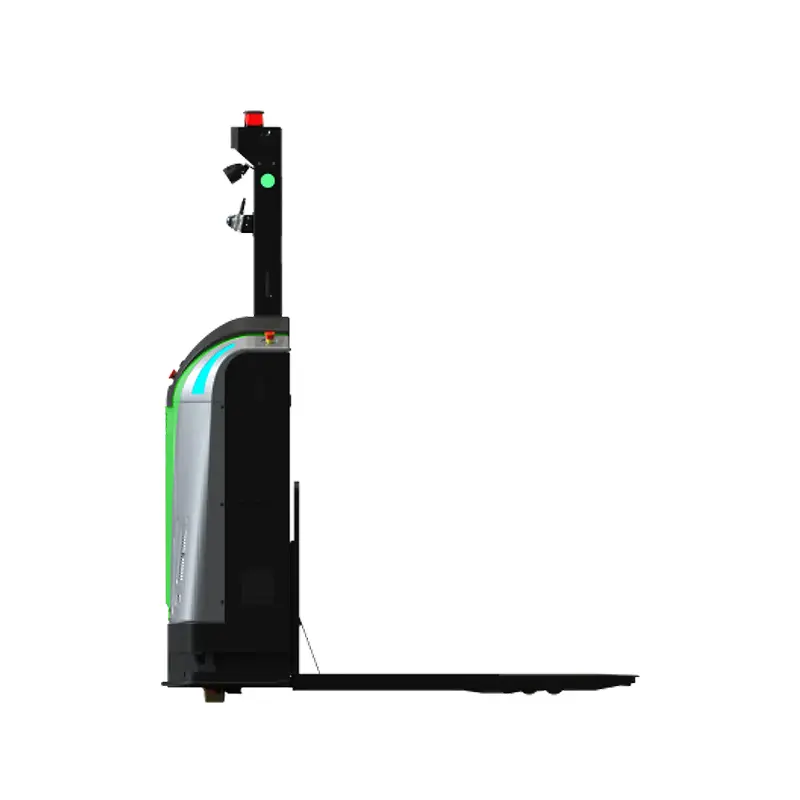

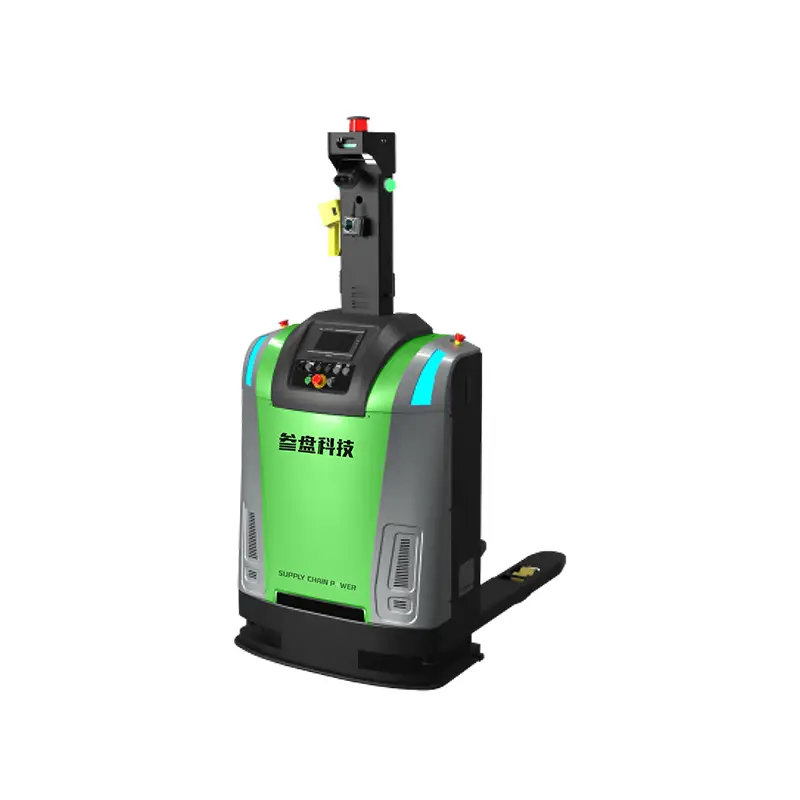

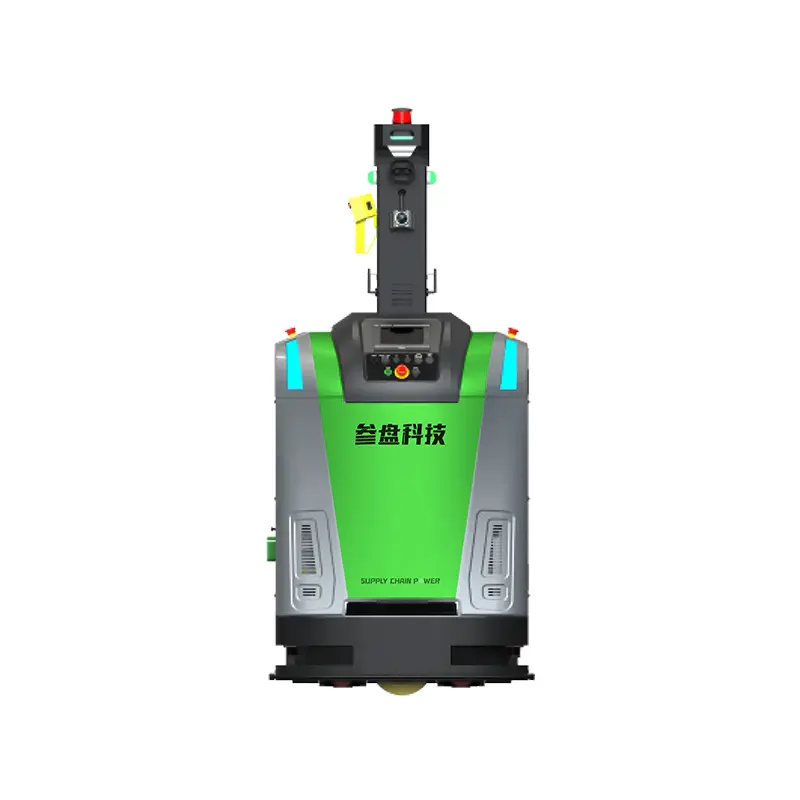

Best Laser SLAM Handling Smart Forklift SFL-CBD20 Manufacturers, Factories
Product Description
Product Overview & Key Features
01
2 T load handling, AI pallet recognition
2 T high load, the car width is only 960 mm, and the narrow road is smooth. AI recognition algorithm supports multi-spec, multi-color, wrap film, broken pallet, etc., and can be adaptively recognized and inserted from multiple angles and high-precision.
02
Three navigation options, ±10 mm positioning accuracy
It supports three navigation methods: SLAM, reflector, and NFL, covering various scenario business navigation needs, such as secondary positioning, high dynamic environment, no transformation environment, etc.; the positioning accuracy can reach ±10 mm.
03
10 h battery life, 3 min Quick battery replacement
Paired with a 51.2 V / 106 Ah battery, the battery life is up to 10 hours, and 3 min for beginners to quickly change the battery.
04
40 m ranging, 4 levels of safety protection
40 m detection distance, large field of view, safer. With 3D safety obstacle avoidance laser, safety touch edge, distance sensor, and 4-fold safety protection for hardware self-test.
05
High-end all series, super stable
The full series is equipped with double-spring shock absorption and supercharged oil cylinders for the drive wheels, avoiding slippage in various scenarios and ensuring the reliability and stability of the entire vehicle.
06
The Compact Powerhouse for Efficient Handling
The SFL-CBD20 delivers 2-ton payload performance within a remarkably slim 960 mm chassis, mastering navigation in confined storage spaces. Equipped with AI vision systems ("Intelligent Cognition"), it achieves:
• Multi-standard/multi-color pallet recognition
• Reliable detection of wrapped/damaged pallets
• Adaptive fork positioning (±5mm accuracy)
• Advanced multi-angle recognition technology ensures millimeter-precision load handling, boosting operational efficiency by 30%+.
07
Multi-Navigation Architecture
Tri-mode localization flexibility:
• SLAM(LiDAR-based mapping)
• Reflector Marker Guidance
• Natural Feature Learning (NFL)
08
Maintains ±10 mm positioning accuracy across
• Secondary localization tasks
• High-dynamic environments
• Zero-infrastructure deployments
09
Extended Operational Endurance
• 51.2V/106Ah lithium iron phosphate battery
• 10-hour continuous runtime
• 3-minute hot-swappable battery
10
Quad-Safety Matrix (ISO 3691-4 Certified)
• 40m-range 3D Safety LiDAR
• EN 1175-compliant bumpers
• Proximity sensor array (0.1-8m detection)
• Real-time hardware diagnostics
11
Stability Engineering Essentials
Standardized reliability features:
• Dual-spring suspended drive wheels
• Pressure-intensifying hydraulic cylinder
Eliminates wheel slippage during 2-ton lifts (tested per ANSI/ITSDF B56.5)
Detailed Specifications
● Standard ○ Optional - Not Available
| PRODUCT MODEL | SFL-CBD20 | |
|---|---|---|
| Basic Parameters | Product name | Laser SLAM handling smart forklift |
| Driving style | Automatic navigation, handheld driving | |
| Navigation method | Laser SLAM | |
| Tray type | Chuan Zi | |
| Rated load capacity | 2000 kg | |
| Load center | 600 mm | |
| Self weight (including battery) | 600 kg | |
| Standard lifting height | 205±5 mm | |
| Vehicle dimensions: length x width x height (excluding fork tips) | 1720 x 960 x 2100 mm | |
| Fork size: length x width x height (excluding fork tip) | 1220 x 173 x 60 mm | |
| Fork outer width | 600 / 680 mm | |
| Right angle stacking channel width, pallet 1000 × 1200 (1200 placed along the fork) | 2155 mm | |
| Minimum turning radius | 2080 mm | |
| Range of environmental temperature and humidity | 2080 mm | |
| Minimum turning radius | 1360 mm | |
| Range of environmental temperature and humidity | Temperature: 0 ℃~50 ℃/Humidity: 10%~90%, no compression condensation | |
| Performance Parameter | Driving speed: full load/empty load | 1.5 / 1.66 m/s |
| Accessibility (slope/step/gap) | ＜5% / 10 mm / 30 mm | |
| Navigation position accuracy | ±10 mm | |
| Navigation angle accuracy | ±1° | |
| Battery Parameters | Battery specifications | 51.2 V / 106 Ah |
| Comprehensive endurance | 10 h | |
| Charging time (10%~80%) | 2 h~3 h | |
| Charging form | Automatic/Manual | |
| Functional Configuration | Quantity of LiDAR | 1（H1）+2（C2）or 1（P+F R2000）+2（C2） |
| Wi-Fi roaming function | ● | |
| 3D obstacle avoidance function | ○ | |
| Stack recognition | ○ | |
| Stacking of material cages | ○ | |
| Identification of high-level shelf pallets | ○ | |
| Pallet stacking and unstacking | ○ | |
| HMI display screen | ● | |
| Security Configuration | EMERGENCY STOP | ● |
| Sound and light indication | ● | |
| Braking distance: 1 m/s / 1.5 m/s | ≤30 cm / ≤50 cm | |
| 360 ° laser protection | ● | |
| Anti-collision strip | ● | |
| Fork tooth height safety protection | ● | |
Core Parameters Summary
| Parameter | Specification |
|---|---|
| Payload Capacity | 2,000 kg |
| Chassis Width | 960 mm |
| Navigation Accuracy | ±10 mm |
| Battery Specification | 51.2V/106Ah |
| Operating Duration | 10 hours |
| Safety LiDAR Range | 40 m |
Frequently Asked Questions (FAQ)
What navigation methods does the SFL-CBD20 support?
The system supports tri-mode localization flexibility: Laser SLAM (LiDAR-based mapping), Reflector Marker Guidance, and Natural Feature Learning (NFL). It allows operation without infrastructure modification while maintaining positioning accuracy up to ±10 mm.
What is the rated load capacity and chassis dimension?
The vehicle delivers a 2,000 kg (2 T) rated payload capacity within a slim 960 mm chassis width, making it ideal for narrow aisle navigation and high-density storage environments.
How does the pallet recognition system handle damaged or wrapped pallets?
Equipped with AI vision recognition technology, the system adaptively detects multi-spec, multi-color, wrap film, and broken pallets from multiple angles with an adaptive fork positioning accuracy of ±5 mm.
What are the battery specifications and replacement procedures?
The unit is powered by a 51.2 V / 106 Ah lithium battery providing up to 10 hours of continuous runtime. It supports both automatic and manual charging, as well as a 3-minute quick manual battery swap.
What safety mechanisms are built into the vehicle?
The forklift features a certified Quad-Safety Matrix including a 40 m range 3D obstacle avoidance LiDAR, 360° laser protection, collision contact strips, proximity sensors, fork height safety limits, and emergency stop systems.
Can this automated forklift operate on ramps or uneven surfaces?
Yes. It features dual-spring suspended drive wheels and pressure-intensifying hydraulic cylinders, allowing it to navigate slopes of <5%, steps up to 10 mm, and gaps up to 30 mm while preventing wheel slippage.
