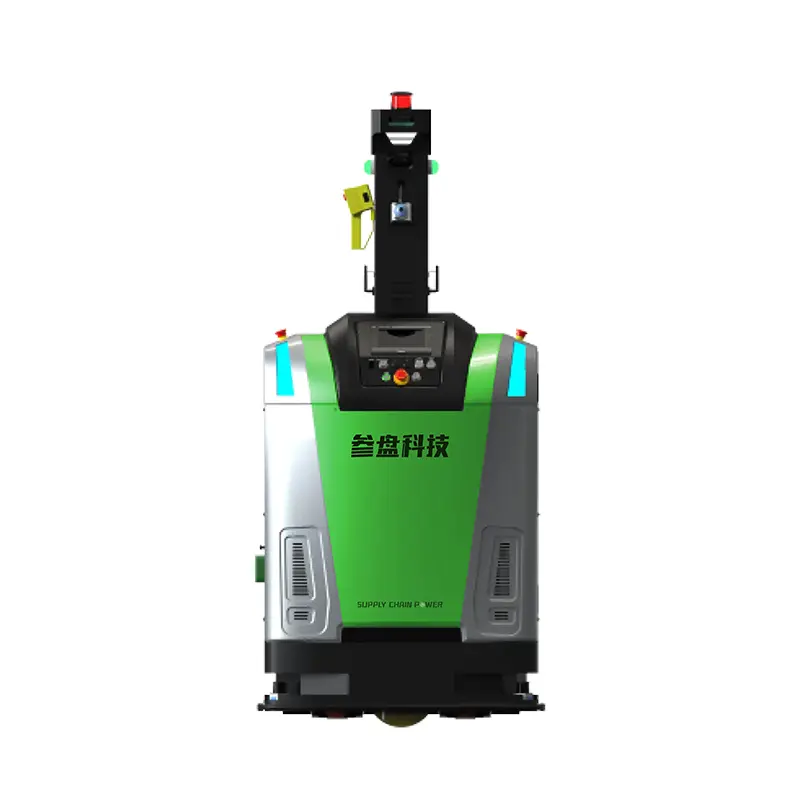

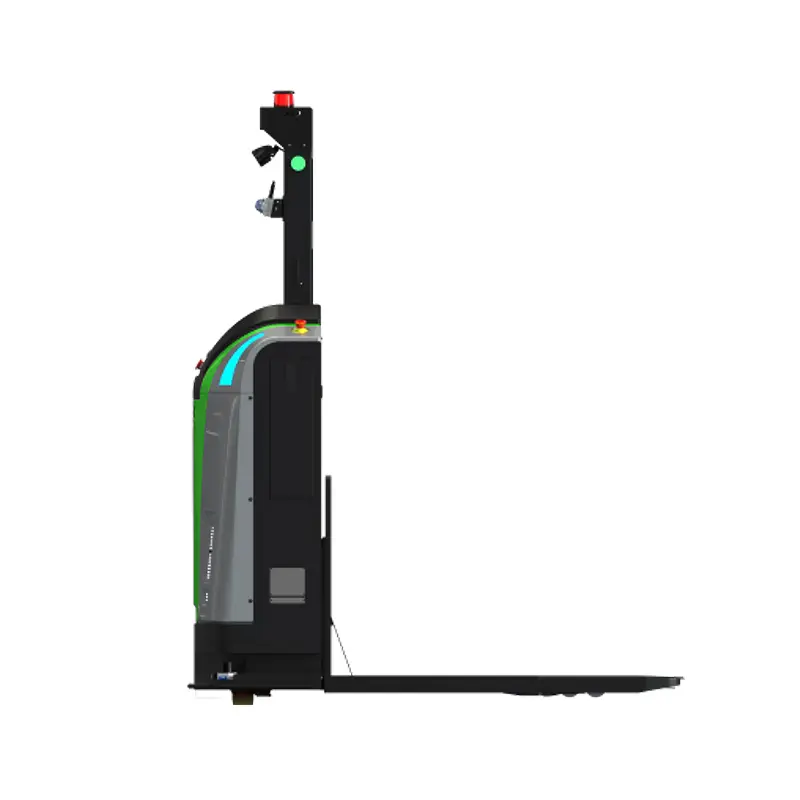

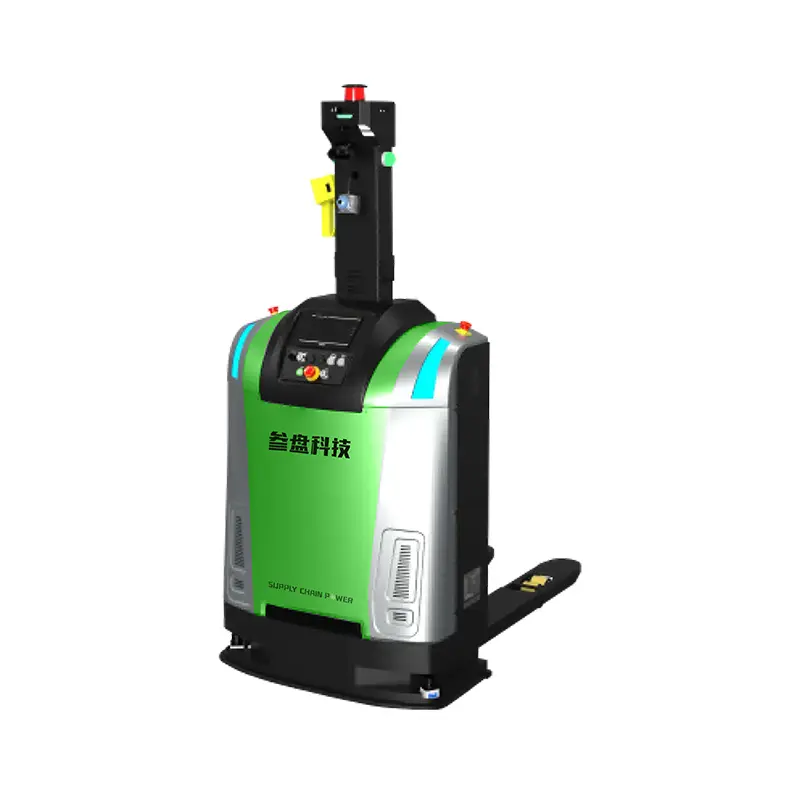

Best Laser SLAM Handling Smart Forklift SFL-CBD30 Manufacturer, Supplier
Product Description
Land resources are becoming increasingly tight, site rents are getting higher and higher, land costs for enterprises are rising, and production and warehouse operation areas are getting narrower and smaller. In order to maximize the space utilization rate, enterprises expect the current warehouse lanes to become as narrow as possible, and maximize the storage height to improve space utilization to keep up with the profit needs of enterprises. More and more enterprises begin to choose to use narrow lane forklifts.
Key Capabilities & Features
01
3 T load handling, AI pallet recognition
3T ultra-high load, AI recognition algorithm, supports multi-spec, multi-color, wrap film, broken pallet and other vehicle recognition, and can be adaptively recognized and inserted from multiple angles and high-precision to achieve stable pick-up and delivery.
02
Three navigation options, ±10 mm positioning accuracy
It supports three navigation methods: SLAM, reflector, and NFL, covering various scenario business navigation needs, such as secondary positioning, high dynamic environment, no transformation environment, etc.; the positioning accuracy can reach ±10 mm.
03
8 h battery life, 3 min fast battery replacement
Paired with a 51.2 V / 106 Ah battery, the battery life is up to 8 hours, and 3 min for beginners to quickly change the battery.
04
40 m ranging, 4 levels of safety protection
40 m detection distance, large field of view, safer. With 3D safety obstacle avoidance laser, safety touch edge, distance sensor, and 4-fold safety protection for hardware self-test.
05
High-end all series, super stable
The full series is equipped with double-spring shock absorption and supercharged oil cylinders for the drive wheels, avoiding slippage in various scenarios and ensuring the reliability and stability of the entire vehicle.
06
The Ultimate Material Handling Solution
SFL-CBD30 redefines heavy-duty warehouse performance with its 3-ton payload capacity and AI-powered vision system. This "Intelligent Eye" delivers:
- Multi-format/multi-color pallet recognition
- Reliable identification of wrapped/damaged pallets
- Adaptive fork positioning (±5mm) for all-load handling
07
Flexible Navigation Architecture
Triple-mode localization system:
- SLAM (Simultaneous Localization and Mapping)
- Reflector Marker Navigation
- Natural Feature Learning (NFL)
08
Uninterrupted Productivity
- 51.2V/106Ah high-density lithium battery
- 8-hour continuous operation per charge
- 3-minute battery swap, faster than competitors' coffee breaks
09
Quad-Layer Safety Ecosystem
- Long-range 3D Safety LiDAR(40m detection)
- Certified Bumper Edges(EN ISO 13856-1)
- Proximity Sensor Array
- Hardware Self-Diagnostics
- Meets ANSI/ITSDF B56.5 safety standards
10
Enhanced Stability Engineering
Standard features ensure slip-free operation:
- Dual-spring suspension drive wheels
- Pressure-intensifying hydraulic cylinder
- Eliminates wheel spin during 3-ton lifting
Key Parameter Overview
| Parameter | Value |
|---|---|
| Max Payload | 3,000 kg |
| Navigation Accuracy | ±10 mm |
| Battery Voltage/Capacity | 51.2V/106Ah |
| Operating Time | 8 hours |
| LiDAR Detection Range | 40 m |
| Recognition Capability | Wrapped/Damaged pallets |
Detailed Specifications
| ● Standard ○ Optional - Not Have | ||
|---|---|---|
| PRODUCT MODEL | SFL-CBD30 | |
| Basic Parameters | Product name | Laser SLAM handling smart forklift |
| Driving style | Automatic navigation, handheld driving | |
| Navigation method | Laser SLAM | |
| Tray type | Chuan Zi | |
| Rated load capacity | 3000 kg | |
| Load center | 600 mm | |
| Self weight (including battery) | 600 kg | |
| Standard lifting height | 205±5 mm | |
| Vehicle dimensions (L x W x H, excluding fork tips) | 1720 x 960 x 2100 mm | |
| Fork size (L x W x H, excluding fork tip) | 1220 x 173 x 60 mm | |
| Fork outer width | 600 / 680 mm | |
| Right angle stacking channel width (1000 × 1200 pallet along fork) | 2155 mm | |
| Minimum turning radius | 1360 mm / 2080 mm | |
| Environmental temperature and humidity | Temperature: 0 ℃~50 ℃ / Humidity: 10%~90%, no condensation | |
| Performance Parameter | Driving speed (full load / empty load) | 1.5 / 1.66 m/s |
| Accessibility (slope / step / gap) | ＜5% / 10 mm / 30 mm | |
| Navigation position accuracy | ±10 mm | |
| Navigation angle accuracy | ±1° | |
| Battery Parameters | Battery specifications | 51.2 V / 106 Ah |
| Comprehensive endurance | 8 h | |
| Charging time (10%~80%) | 2 h~3 h | |
| Charging form | Automatic / Manual | |
| Functional Configuration | Quantity of LiDAR | 1（H1）+2（C2）or 1（P+F R2000）+2（C2） |
| Wi-Fi roaming function | ● | |
| 3D obstacle avoidance function | ○ | |
| Stack recognition | ○ | |
| Stacking of material cages | ○ | |
| Identification of high-level shelf pallets | ○ | |
| Pallet stacking and unstacking | ○ | |
| HMI display screen | ● | |
| Security Configuration | EMERGENCY STOP | ● |
| Sound and light indication | ● | |
| Braking distance (1 m/s / 1.5 m/s) | ≤30 cm / ≤50 cm | |
| 360° laser protection | ● | |
| Anti-collision strip | ● | |
| Fork tooth height safety protection | ● | |
Frequently Asked Questions (FAQ)
Q What is the rated load capacity of the SFL-CBD30 smart forklift?
The SFL-CBD30 features an ultra-high payload capacity of 3,000 kg (3 tons), making it ideal for heavy-duty material handling in industrial and warehouse environments.
Q Which navigation modes does this smart forklift support?
It offers triple-mode flexible localization architecture: Laser SLAM, Reflector Marker Navigation, and Natural Feature Learning (NFL), achieving a high positioning accuracy of ±10 mm.
Q How long is the battery run time and how does charging work?
Powered by a 51.2V/106Ah lithium battery, it provides up to 8 hours of continuous operation. Fast battery replacement can be completed in just 3 minutes, with recharging taking approximately 2 to 3 hours supporting both automatic and manual methods.
Q Can the vision system recognize damaged or non-standard pallets?
Yes, the AI recognition algorithm detects multi-spec, multi-color, stretch-wrapped, and broken pallets, adjusting fork alignment adaptively with ±5 mm precision.
Q What safety features are integrated into the SFL-CBD30?
It is equipped with a quad-layer safety system: a 40-meter long-range 3D LiDAR detection, physical safety touch edges, proximity distance sensors, 360° laser safety zones, and continuous hardware self-diagnostics compliant with ANSI/ITSDF B56.5 and EN ISO 13856-1 standards.
