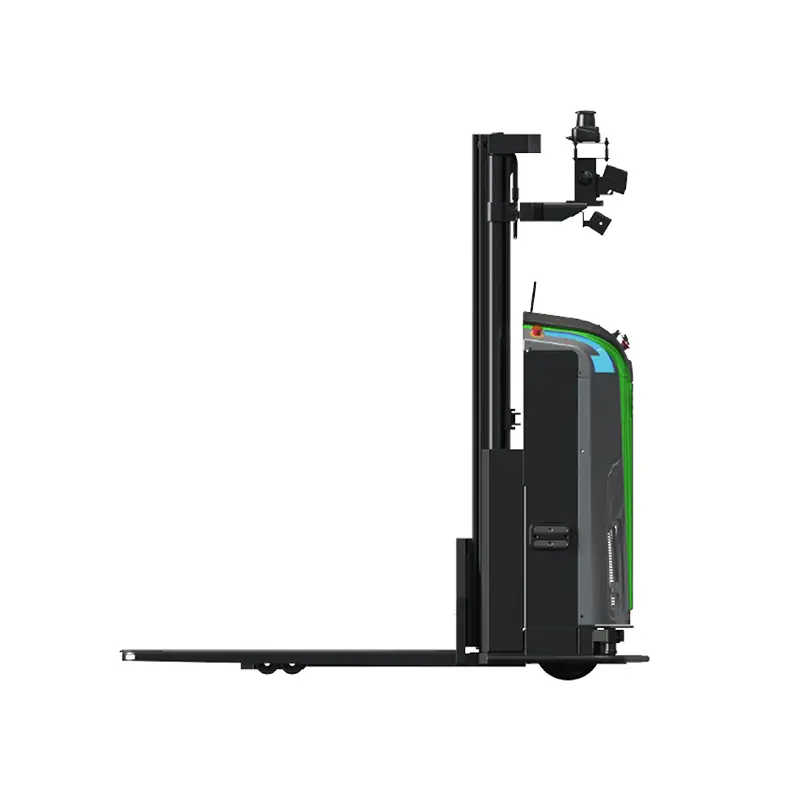

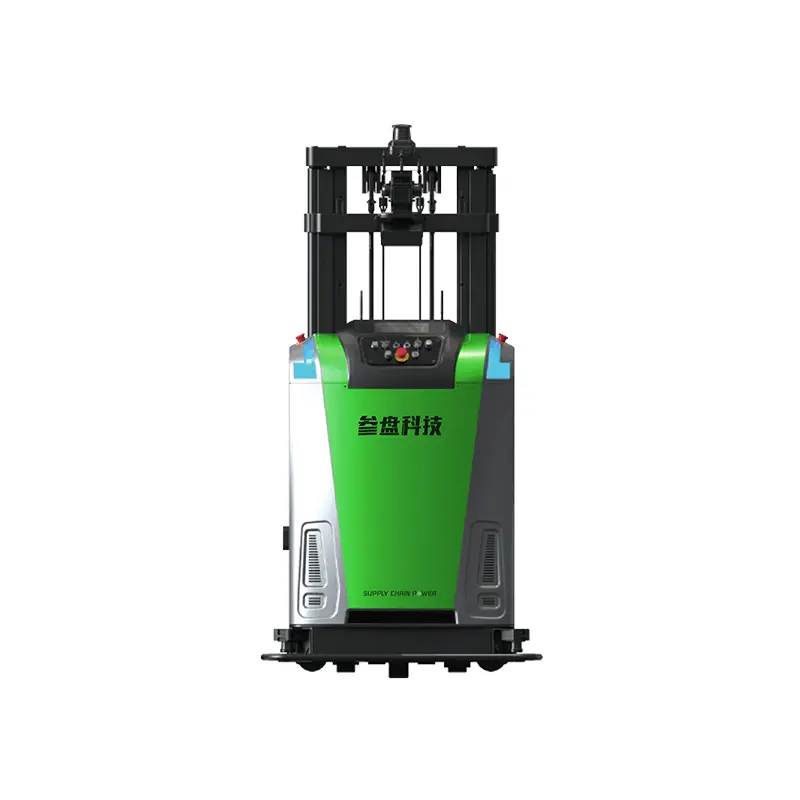

Best Laser SLAM Stack-height Smart Forklift SFL-CDD16 Suppliers, Factory
Product Description
SFL-CDD16: The Efficiency Vanguard in Material Handling
Redefining warehouse productivity standards through cutting-edge automation technology and engineered performance excellence
⚡
Zero throughput degradation during loaded operations
🛠️
Future-proofed modular architecture
🛡️
Certifiable safety integration
📈
30% higher storage density utilization
Key Capabilities & Features
01
SLAM Navigation Precision
±10 mm Accuracy SLAM Navigation, reflector-free for rapid deployment.
- LiDAR-based SLAM navigation (±10mm accuracy)
- Reflector-free deployment - Zero infrastructure requirements
- Rapid environmental adaptation for new/retrofitted warehouses
- Reduces implementation time by 60% vs conventional AGVs
02
Uncompromised Speed Performance
2 m/s Operational Speed with consistent drive dynamics.
No-load maximum operation speed reaches 2 m/s, maintaining peak velocity at 1.6T capacity with zero speed drop for 30% faster throughput cycle times.
03
Heavy-Duty Lifting Capability
1.6 T Load at 3 m Lift without lowering load or capacity derating.
- 1.6T payload capacity at full 3m lift height
- Zero derating across operational envelope
- Mastery of high-bay racking operations (tested per FEM 4.004)
04
Modular Maintenance-Optimized Design
Family-made industrial design with multi-modular architecture ensuring rapid disassembly, installation, and maintenance.
- Tool-less access components: Control panel assemblies, sensor mounting brackets, harness routing systems
- 40% faster MTTR (Mean Time To Repair)
05
Intelligent Load Recognition
High-precision vehicle identification and fork positioning ensure accurate load handling.
- Multi-standard pallet identification: GB/T (China Standard), ISO 6780 (European Standard), Non-standard configurations
- ±5mm fork positioning precision
- 99.1% first-attempt engagement success
06
Expandable Safety Ecosystem
Comprehensive active and passive safety architecture configured for optimal protection.
- 360° Safety LiDAR (20m scanning range)
- High-resolution 3D vision cameras & safety touch edges
- IEC 61496-compliant safety bumpers & proximity sensor array
- Meeting ANSI/ITSDF B56.5 safety category requirements
Technical Excellence Summary
| Capability | Benchmark |
|---|---|
| Navigation Accuracy | ±10 mm |
| Max Speed (Loaded / Unladen) | 2 m/s |
| Lift Height @ 1.6T | 3.0 m |
| Recognition Standards | 3 Major Global Types |
| Maintenance Index | 40% Faster Downtime Recovery |
Technical Specifications
● Standard
○ Optional
- Not Available
| Category | Parameter | Specification (Model: SFL-CDD16) |
|---|---|---|
| Basic Parameters | Product Name | Laser SLAM stack-height smart forklift |
| Driving Style | Automatic navigation, handheld driving | |
| Navigation Method | Laser SLAM | |
| Tray Type | Chuan Zi | |
| Rated Load Capacity | 1600 kg | |
| Load Center | 600 mm | |
| Self Weight (including battery) | 1090 kg | |
| Standard Lifting Height | 3000 mm | |
| Vehicle Dimensions (L x W x H, excluding fork tips) | 1925 x 1000 x 2040 mm | |
| Fork Size (L x W x H, excluding fork tip) | 1220 x 185 x 55 mm | |
| Fork Outer Width | 550 / 600 / 685 mm | |
| Right Angle Stacking Channel Width, Pallet 1000 × 1200 (1200 along fork) | 2250+200 mm | |
| Right Angle Stacking Channel Width, Tray 800 × 1200 (1200 along fork) | 2230+200 mm | |
| Right Angle Stacking Channel Width, Pallet 1000 × 1000 (1000 along fork) | 2160+200 mm | |
| Minimum Turning Radius | 1340+200 mm | |
| Environmental Temperature and Humidity Range | Temperature: 0 ℃~50 ℃ / Humidity: 10%~90%, no condensation | |
| Performance Parameters | Driving Speed (Full Load / Empty Load) | 2 / 2 m/s |
| Accessibility (Slope / Step / Gap) | ＜5% / 5 mm / 15 mm | |
| Navigation Position Accuracy | ±10 mm | |
| Navigation Angle Accuracy | ±0.5° | |
| Battery Parameters | Battery Specifications | 24 V / 173 Ah (Lithium iron phosphate) |
| Comprehensive Endurance | 8 h ~ 10 h | |
| Charging Time (10% ~ 80%) | 2 h | |
| Charging Form | Automatic / Manual | |
| Functional Configuration | Quantity of LiDAR | 1 (H1) + 3 (C2) |
| Wi-Fi Roaming Function | ● | |
| 3D Obstacle Avoidance Function | ○ | |
| Stack Recognition | ○ | |
| Cage Stacking | ○ | |
| High-level Shelf Pallet Identification | ○ | |
| Pallet Stacking and Unstacking | ○ | |
| HMI Display | ● | |
| Security Configuration | Emergency Stop Button | ● |
| Audio-Optical Indication | ● | |
| Braking Distance (at 1 m/s / at 1.5 m/s) | ≤30 cm / ≤50 cm | |
| 360° Laser Protection | ● | |
| Anti-Collision Bar | ● | |
| Fork Tine Height Safety Protection | ● | |
| Authentication | EMC Certification | ● |
| UN38.3 Certification | ● |
Frequently Asked Questions
What navigation technology does the SFL-CDD16 utilize?
The SFL-CDD16 uses advanced Laser SLAM navigation with ±10 mm accuracy. It operates reflector-free with zero infrastructure installation required, reducing deployment time by up to 60%.
Does the vehicle lose speed when carrying a full payload?
No. The forklift maintains an uncompromised travel speed of 2 m/s under both empty load and full 1.6-ton load conditions, ensuring peak operational throughput.
What pallet types are compatible with the intelligent recognition system?
The vehicle supports GB/T (China Standard), ISO 6780 (European Standard), and non-standard configurations (such as Chuan Zi pallets) with ±5mm fork positioning precision and a 99.1% first-attempt engagement rate.
What are the battery specifications and charging performance?
Equipped with a 24V / 173Ah lithium iron phosphate battery, it provides 8 to 10 hours of comprehensive runtime and can charge from 10% to 80% within 2 hours using automatic or manual charging modes.
What safety mechanisms are built into the smart forklift?
Standard safety configurations include 360° laser scanning coverage, emergency stop triggers, audio-optical warnings, an anti-collision bar, and fork tine height detection. Optional 3D vision and obstacle avoidance packages are also available.
