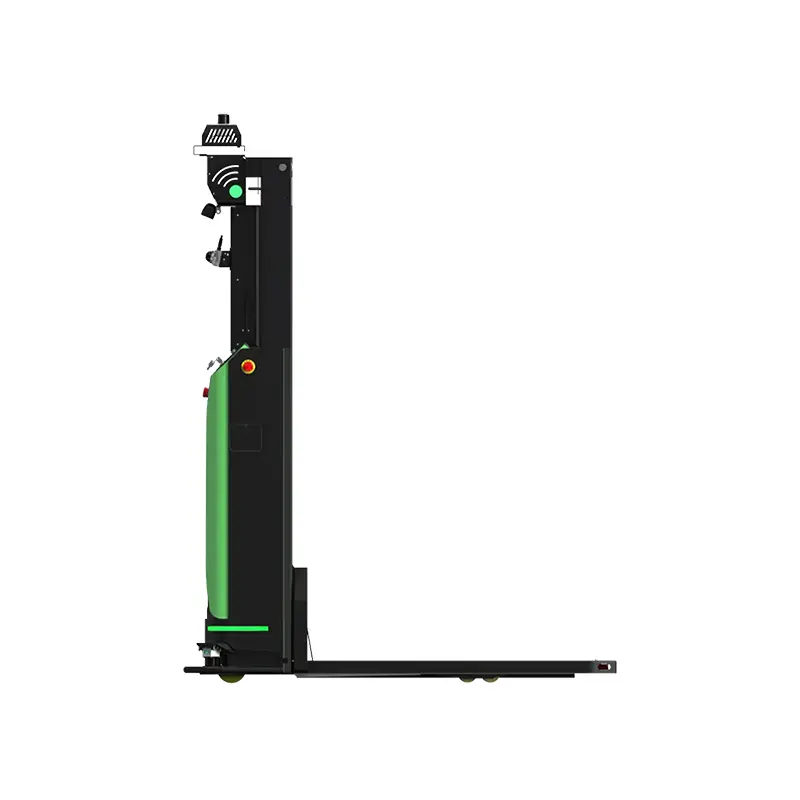

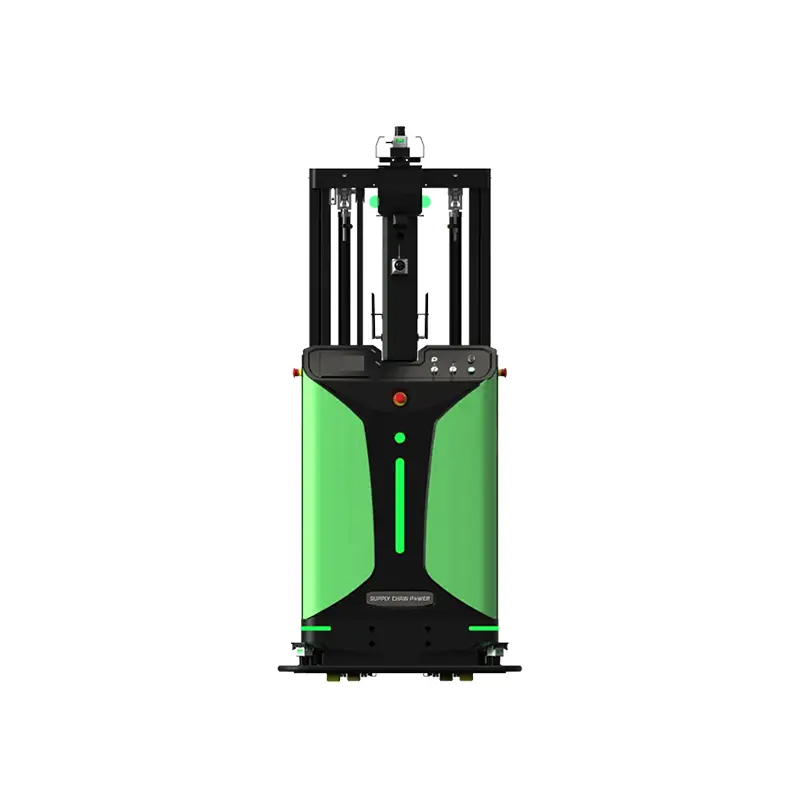

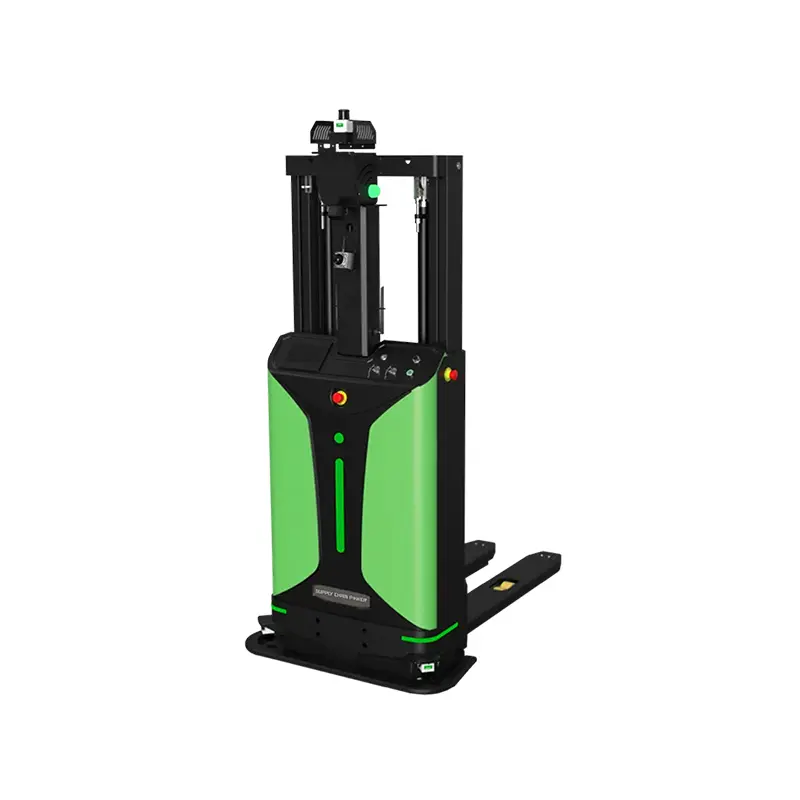

China Laser SLAM Small Stack-Height Smart Forklift SFL-CDD14 & SFL-CDD14-CE Manufacturers, Supplier
Product Description
Product Overview & Key Features
🌐
01
CE & Non-CE Car Body
This series covers CE versions and non-CE models, fully meeting all kinds of use scenarios at home and abroad.
🎯
02
SLAM Navigation
±10 mm Accuracy SLAM Navigation, no reflector required.
🛡️
03
360° Three-Dimensional Protection
Cooperate with 3D obstacle avoidance, safe edge contact, distance sensor and other sensors to carry out 360° three-dimensional safety protection, and greatly guarantee the safety attributes.
📐
04
Slim Figure
The ultra-small radius can also complete the work when facing a narrow channel.
🚜
05
SFL-CDD14-CE: Universal Performer
Engineered as the ultimate solution for international logistics operations, this intelligent forklift AGV features dual-design flexibility with both CE-certified and non-CE chassis configurations. This strategic adaptation ensures compliance with regional regulations while delivering seamless integration across diverse operational environments.
⚡
06
Precision Navigation Technology
Advanced LiDAR-based SLAM navigation achieves ±10 mm positioning accuracy without reflector dependencies. This infrastructure-free system enables rapid path planning in dynamic settings, delivering:
→ 22% faster cycle times versus marker-dependent AGVs
→ Consistent performance in low-illumination environments (tested per ISO 8373)
🔒
07
Comprehensive Safety Architecture
Multi-sensor protective ecosystem includes:
• 3D Obstacle Detection System (EN ISO 13856-1 compliant)
• Safety Bumper Perimeter (Cat. 3 PLd, ISO 13849)
• Proximity Sensor Array (0.05-8m range)
Ensuring 360° protection in human-robot collaboration scenarios.
📦
08
Space-Optimized Performance Profile
• Industry-minimal turning radius - outperforms conventional reach trucks
• Ultra-compact chassis design - masters aisles under 2,000 mm
• 1.4-ton payload capacity - maintains stability during full-load maneuvers
🚀
09
Global Implementation Advantages
→ Single-platform solution for EU/APAC/NA markets
→ 30% wider aisle clearance versus standard AGVs
→ Pre-configured ROS interfaces for WMS integration
→ Optional IEC 60204 emergency stop packages
Technical Specifications
| ● Standard ○ Optional - Not have | |||
| Category | Item | SFL-CDD14 | SFL-CDD14-CE |
|---|---|---|---|
| Basic Parameters | Product Name | Laser SLAM Small Stack-Height Smart Forklift | Laser SLAM Small Stack-Height Smart Forklift |
| Driving style | Automatic navigation, handheld driving | Automatic navigation, handheld driving | |
| Navigation method | Laser SLAM | Laser SLAM | |
| Tray type | Chuan Zi | Chuan Zi | |
| Rated load capacity | 1400 kg | 1400 kg | |
| Load center | 600 mm | 600 mm | |
| Self weight (including battery) | 680 / 740 kg | 680 / 740 kg | |
| Standard lifting height | 1600 / 3000 mm | 1600 / 3000 mm | |
| Vehicle dimensions: length x width x height (excluding fork tips) | Furui H1/Beijiafu: 1710 x 989 x 1998 / 1710 x 989 x 2247 mm | Beijiafu: 1722 x 951 x 2064 / 1722 x 951 x 2234 mm | |
| SICK: 1722 x 951 x 2042 / 1722 x 951 x 2234 mm | |||
| Fork size: length x width x height (excluding fork tip) | 1220 x 180 x 70 mm | 1220 x 180 x 70 mm | |
| Fork outer width | 570 / 680 mm | 555 / 570 / 680 mm | |
| Right angle stacking channel width, pallet 1000 × 1200 (1200 placed along the fork) | 1951+200 mm | 1966+200 mm | |
| Right angle stacking channel width, tray 800 × 1200 (1200 placed along the fork) | 1885+200 mm | 1911+200 / 1914+200 / 1936+200 mm | |
| Right angle stacking channel width, pallet 1000 × 1000 (1000 placed along the fork) | 1822+200 mm | 1911+200 / 1914+200 / 1936+200 mm | |
| Minimum turning radius | 1227+200 mm | 1206+200 mm | |
| Range of environmental temperature and humidity | Temperature: 0 ℃~50 ℃ / Humidity: 10%~90%, no compression condensation | Temperature: 0 ℃~50 ℃ / Humidity: 10%~90%, no compression condensation | |
| Performance Parameter | Driving speed: full load/empty load | 1.2 / 1.5 m/s | 1.2 / 1.5 m/s |
| Accessibility (slope/step/gap) | ＜5% / 5 mm / 15 mm | ＜5% / 5 mm / 15 mm | |
| Navigation position accuracy | ±10 mm | ±10 mm | |
| Navigation angle accuracy | ±0.5° | ±0.5° | |
| Battery Parameters | Battery specifications | 24 V / 100 Ah (Lithium iron phosphate) | 24 V / 100 Ah (Lithium iron phosphate) |
| Comprehensive endurance | 10 h | 10 h | |
| Charging time (10%~80%) | 2 h | 2 h | |
| Charging form | Automatic/Manual | Automatic/Manual | |
| Functional Configuration | Quantity of LiDAR | 1 (Furui H1/Beijiafu R2000-25M) + 3 (Furui C2) | 1 (SICK nanoScan3 Core / P+F OMD25M-R2000-B23-V1V1D-SD-1L) + 3 (2 SICK nanoScan3 HV + 1 FREE C214) |
| Wi-Fi roaming function | ● | ● | |
| 3D obstacle avoidance function | ○ | ○ | |
| Stack recognition | ○ | ○ | |
| Stacking of material cages | ○ | ○ | |
| Identification of high-level shelf pallets | ○ | ○ | |
| Pallet stacking and unstacking | ○ | ○ | |
| HMI display screen | ● | ● | |
| Security Configuration | EMERGENCY STOP | ● | ● |
| Audible and visual indication | ● | ● | |
| Braking distance: 1 m/s / 1.5 m/s | ≤30 cm / ≤50 cm | ≤30 cm / ≤50 cm | |
| 360° laser protection | ● | ● | |
| Anti-collision strip | ● | - | |
| Fork tooth height safety protection | ● | ● | |
| Authentication | Authentication 1 | - | ● |
| Authentication 2 | ● | ● | |
| Authentication 3 | ● | ● | |
Standards & Certifications
| Feature | Standard / Certification |
|---|---|
| Positioning | ISO 9283 ±10mm |
| Safety | EN 1175:2020 |
| Navigation | IEC 62998:2019 |
| Load Handling | ISO 5053-1:2015 |
Frequently Asked Questions (FAQ)
Q: What is the primary difference between SFL-CDD14 and SFL-CDD14-CE?
The SFL-CDD14-CE is engineered specifically to meet strict European CE standards, featuring enhanced safety sensor suites like SICK nanoScan3 components and standardized safety architectures for global deployments, whereas the standard model is tailored for standard industrial use cases.
Q: Does the Laser SLAM navigation require physical reflectors or floor markers?
No, the advanced LiDAR-based SLAM technology is completely infrastructure-free. It maps and navigates environments dynamically without requiring reflectors, magnetic strips, or QR markers, achieving ±10 mm positioning accuracy.
Q: How long does the battery last and how quickly does it recharge?
Equipped with a 24 V / 100 Ah lithium iron phosphate battery, the smart forklift offers up to 10 hours of continuous comprehensive endurance. It supports fast charging, reaching 10% to 80% capacity within 2 hours using automatic or manual charging modes.
Q: Can this smart forklift operate safely alongside human workers?
Yes, the vehicle incorporates 360° laser protection, 3D obstacle avoidance (EN ISO 13856-1 compliant), proximity arrays, and sensitive bumper protection (Cat. 3 PLd) designed to ensure maximum safety in shared human-robot collaboration environments.
Q: What aisle width is required for proper operation?
Thanks to its ultra-compact design and an industry-minimal turning radius of 1206–1227 mm (+200 mm allowance), the forklift effortlessly navigates narrow corridors and right-angle stacking channels starting from around 1822–1966 mm depending on the pallet size.
