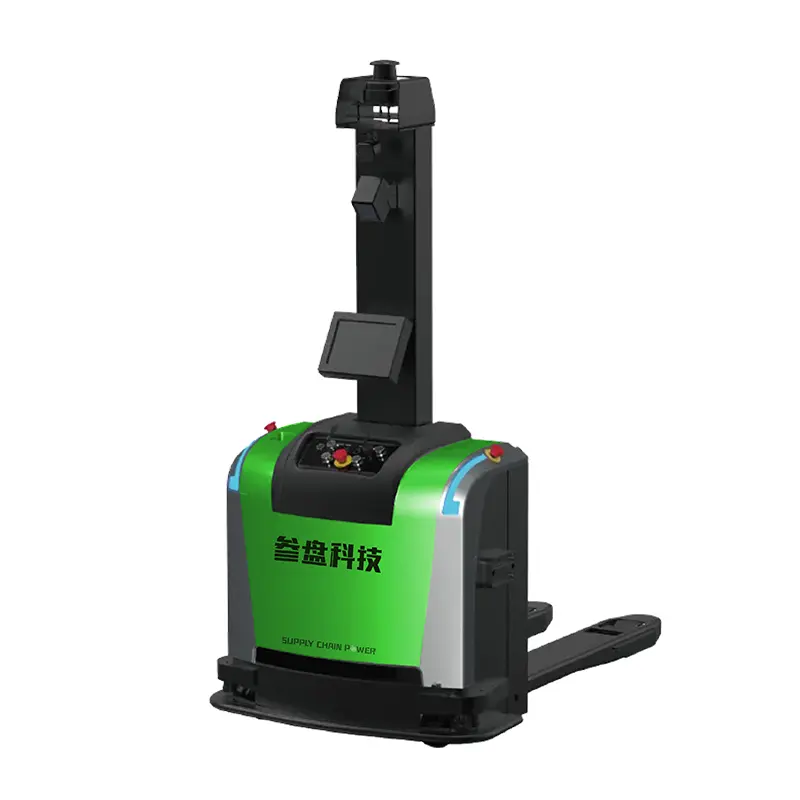

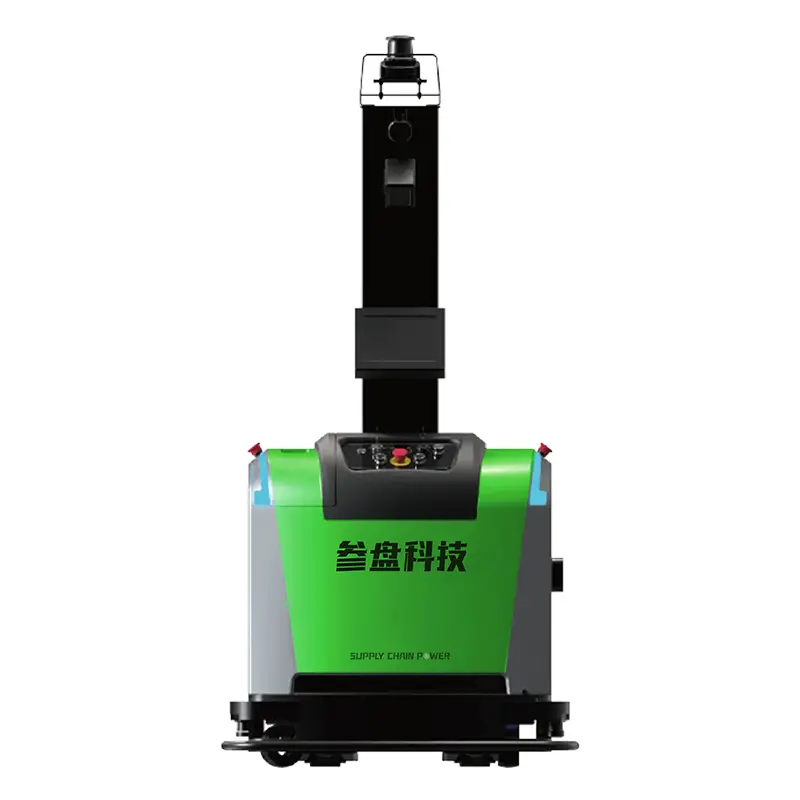

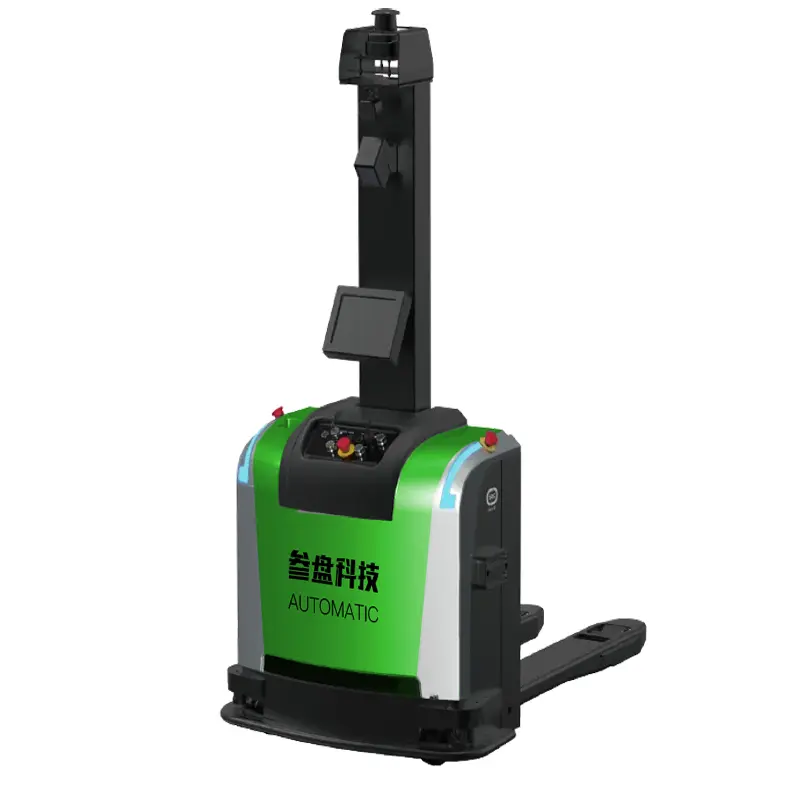

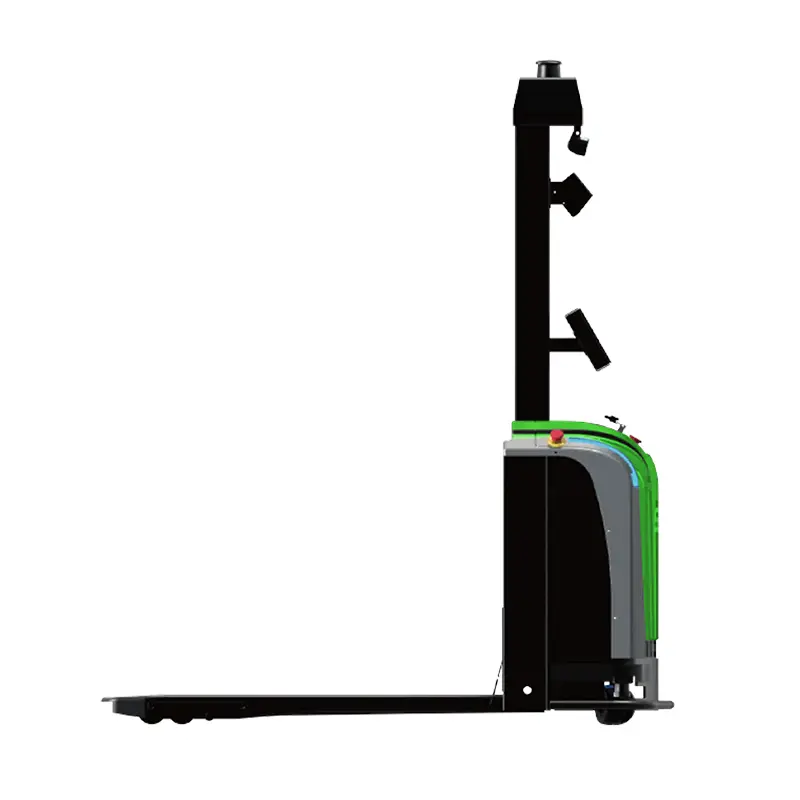

China Laser SLAM Portable Intelligent Forklift Manufacturer, Factories
Product Description
Key Product Advantages & Capabilities
Small Stature, 1.5T Large Load Capacity
The body width is only 932 mm (domestic version) and 980 mm (CE version), with smooth and unobstructed narrow roads, and supports a maximum load capacity of 1.5 T.
360° Panoramic View & Safety Protections
Supports up to 360° scanning range, wide field of view, safer. Equipped with multiple safety protections such as safety obstacle avoidance laser, safety edge contact, distance sensor, hardware self check, etc., it comprehensively ensures the safety of people, goods, and equipment.
Wide-Angle High-Precision Recognition
Support multiple sizes and types of trays, shelves, and cages. Can recognize from multiple angles and with high precision (such as nine legged pallets, Sichuan style pallets, non-standard pallets).
Maximum Speed of 2 m/s, 400,000 m² Map
Maximum running speed of 2 m/s, supporting recognition of maps up to 400,000 m², easily crossing regional restrictions, providing greater handling space and storage location options.
Fast Charging & Quick Battery Swapping
Supports up to 46A fast charging, charging for 1 hour, single battery range of 4 to 6 hours, dual battery range of 8 to 10 hours. 3-minute novice quick battery change; Global insurance certified modular battery, supporting dual battery combinations, enjoying dual battery life.
CE and Non-CE Global Compliance
This series covers both CE versions and non CE models, fully meeting various usage scenarios both domestically and internationally.
Intelligent Automation for Efficient Logistics
In the strategic landscape of warehousing logistics, this Laser SLAM Forklift AGV redefines material handling efficiency. With a compact body width of 932 mm (CE version: 980 mm), it maneuvers effortlessly through narrow aisles while delivering an exceptional 1.5-ton payload capacity – a dual breakthrough in spatial optimization and load-bearing capability.
Comprehensive Safety Ecosystem
Equipped with a 360° omnidirectional scanning system for unrestricted vision and continuous safety monitoring. Multiple protective layers – including safety LiDAR, bumpers, proximity sensors, and hardware self-diagnostics – create a comprehensive safety ecosystem, ensuring worry-free operation during every transport task.
Unparalleled Load Carrier Adaptability
Demonstrating remarkable versatility, it achieves wide-angle, high-precision recognition and multi-angle positioning for various pallet types (nine-block, Chuan-style, non-standard) and material racks/cages. This enables flexible and efficient handling of diverse load specifications.
Performance Benchmarks: Speed & Endurance
This series covers both CE versions and non CE models, fully meeting various usage scenarios both domestically and internationally.
Global Compliance Solutions
The series offers both CE-certified and non-CE chassis designs, meeting diverse regulatory requirements across global markets. This enables optimal configuration selection for both domestic and international deployments, empowering enterprises' global expansion strategies and ushering in a new era of intelligent logistics efficiency.
Product Technical Specifications
| Category | Parameters | SFL-CBD15 | SFL-CBD15-CE |
|---|---|---|---|
| Performance Parameter | Product name | Laser SLAM Portable Intelligent Forklift | Laser SLAM Portable Intelligent Forklift |
| Driving style | Automatic navigation, handheld driving | Automatic navigation, handheld driving | |
| Navigation method | Laser SLAM | Laser SLAM | |
| Tray type | Chuan Zi | Chuan Zi | |
| Rated load capacity | 1500 kg | 1500 kg | |
| Load center | 600 mm | 600 mm | |
| Self weight (including battery) | 388 kg | 403 kg | |
| Standard lifting height | 205 mm | 205 mm | |
| Vehicle dimensions: L x W x H (excluding fork tips) | 1712 x 932 x 1902 mm | 1685 x 980 x 1906 mm | |
| Fork size: L x W x H (excluding fork tip) | 1220 x (170+7) x 75 mm (7 mm Wire groove plate) | 1220 x (170+7) x 75 mm (7 mm Wire groove plate) | |
| Fork outer width | 550 / 600 / 680 mm | 550 / 600 / 680 mm | |
| Right angle stacking channel width, pallet 1000 × 1200 (1200 placed along fork) | 2252 + 200 mm | 2260 + 200 mm | |
| Right angle stacking channel width, tray 800 × 1200 (1200 placed along fork) | 2190 + 200 mm | 2220 + 200 mm | |
| Right angle stacking channel width, pallet 1000 × 1000 (1000 placed along fork) | 2224 + 200 mm | 2230 + 200 mm | |
| Minimum turning radius | 1524 mm | 1532 mm | |
| Range of environmental temperature and humidity | Temp: 0 ℃~50 ℃ / Humidity: 10%~90%, no condensation | Temp: 0 ℃~50 ℃ / Humidity: 10%~90%, no condensation | |
| Driving speed: full load / empty load | 2 / 2 m/s | 1.4 / 1.4 m/s | |
| Accessibility (slope / step / gap) | ＜5% / 10 mm / 30 mm | ＜5% / 10 mm / 30 mm | |
| Navigation position accuracy | ±10 mm | ±10 mm | |
| Navigation angle accuracy | ±1° | ±1° | |
| Battery Parameters | Battery specifications | 48 V / 23 Ah (Lithium iron phosphate) | 48 V / 46 Ah (Lithium iron phosphate) |
| Comprehensive endurance | 4 h ~ 6 h | 8 h ~ 10 h | |
| Charging time (10% ~ 80%) | 1 h | 1 h | |
| Charging form | Automatic / Manual | Automatic / Manual | |
| Functional Configuration | Quantity of LiDAR | 1 (H1) + 2 (C2) | 1 (OMD30M-R2000-B23-V1V1D-HD-1L) + 2 (SICK nanoScan3 Core) |
| Wi-Fi roaming function | ● | ● | |
| 3D obstacle avoidance function | ○ | ● | |
| Stack recognition | ○ | ● | |
| HMI display screen | ● | ● | |
| Security Configuration | EMERGENCY STOP | ● | ● |
| Audible and visual indication | ● | ● | |
| Braking distance: 1 m/s / 1.5 m/s | ≤30 cm / ≤50 cm | 1 m / 2 m | |
| Anti-collision strip | ● | - | |
| Fork tooth height safety protection | ● | ● | |
| Authentication | CE Certification | - | ● |
| Standard Compliance 1 | ● | ● | |
| Standard Compliance 2 | ● | ● | |
| International Standard Approval | - | ● |
Frequently Asked Questions (FAQ)
The forklift delivers a rated load capacity of 1.5 tons (1500 kg) with an ultra-compact chassis width of 932 mm for the standard domestic version (SFL-CBD15) and 980 mm for the CE version (SFL-CBD15-CE), allowing smooth operation in narrow warehouse aisles.
The forklift utilizes high-precision Laser SLAM navigation, offering navigation positioning accuracy of ±10 mm and angle accuracy of ±1°. It supports extensive map building and recognition up to 400,000 m² for wide-area operations.
Equipped with lithium iron phosphate batteries, the single battery configuration (48V/23Ah) delivers 4 to 6 hours of endurance, while the dual battery setup (48V/46Ah) offers 8 to 10 hours. It supports 46A fast charging (10% to 80% within 1 hour) as well as a 3-minute rapid modular battery swap.
The SFL-CBD15 offers a maximum running speed of 2 m/s and features anti-collision strips. The SFL-CBD15-CE complies fully with CE standards, runs at 1.4 m/s, features standard 3D obstacle avoidance and stack recognition, and integrates high-grade safety sensors including SICK nanoScan3 Core LiDARs.
It offers versatile carrier adaptability, supporting standard Chuan-style pallets, nine-legged pallets, non-standard custom pallets, material racks, and storage cages via wide-angle, high-precision positioning recognition.
It features a comprehensive multi-layer safety ecosystem including 360° LiDAR scanning, safety edge contact bumpers, proximity sensors, hardware self-diagnostics, fork tooth height safety protection, emergency stop buttons, and audible and visual indicator alerts.
